K&F Concept 3-Way Geared Tripod Head review: precision camera movements with ease

The K&F Concept 3-Way Geared Tripod Head offers respectable performance at the budget end of the spectrum

K&F Concept 3-Way Geared Tripod Head attached to a tripod
(Image: © James Abbott)

Digital Camera World Verdict

The K&F Concept 3-Way Geared Tripod Head doesn’t throw up any surprises and does exactly what it’s designed to do. Build quality is good and operation is smooth. It’s certainly not as impressive as more expensive geared heads and is more expensive than some bigger-name competitors, but it remains an attractive option.

Pros

  • +

    Precise geared movements

  • +

    Aluminium construction

  • +

    Performs well

Cons

  • -

    Not as inexpensive as you’d expect

  • -

    Adequate load capacity

  • -

    Good but not great

Why you can trust Digital Camera World Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out how we test.

If you’re looking for precision over speed, a geared tripod head is the way to go. With these heads, you turn knobs to pan and tilt the head rather than loosening locks to manually position the head. Sure, this works, but geared heads offer millimetre precision for perfect compositions, and the K&F Concept 3-Way Geared Tripod Head is a budget option you’ll find in our best geared tripod head guide.

Geared tripod heads are extremely useful for landscape photography, and other subjects that require precision, such as architecture. And while they don’t offer the speed of a ball head, they don’t suffer from the extremely frustrating post-lock-off drooping many ball heads exhibit. Instead, they offer constantly locked-off, gear-controlled precision.

The K&F Concept 3-Way Geared Tripod Head makes no bold design statements and is exactly what you’d expect; three rubberised knobs with three quick-release switches for larger and faster movements are available. The head features a couple of spirit levels, but like with most heads these are less reliable than the virtual horizon on your camera.

K&F Concept 3-Way Geared Tripod Head: Specifications

Swipe to scroll horizontally

Max load

13.2lbs / 6kg

Weight

1.81lbs / 810g

Size

4.52x5.11x5.51in / 115x130x140mm

Material

Aluminium

(Image credit: James Abbott)

K&F Concept 3-Way Geared Tripod Head: Price

The K&F Concept 3-Way Geared Tripod Head is one of many lower-cost geared heads that make high-precision movements accessible to all. Some geared heads are extremely expensive, and the K&F costs $189 / £189 / AU$302. This is more expensive than some bigger name brands, but it depends on exactly what you’re looking for in a geared tripod head in terms of features, so this could still be the perfect choice for you.

K&F Concept 3-Way Geared Tripod Head: Design & Handling

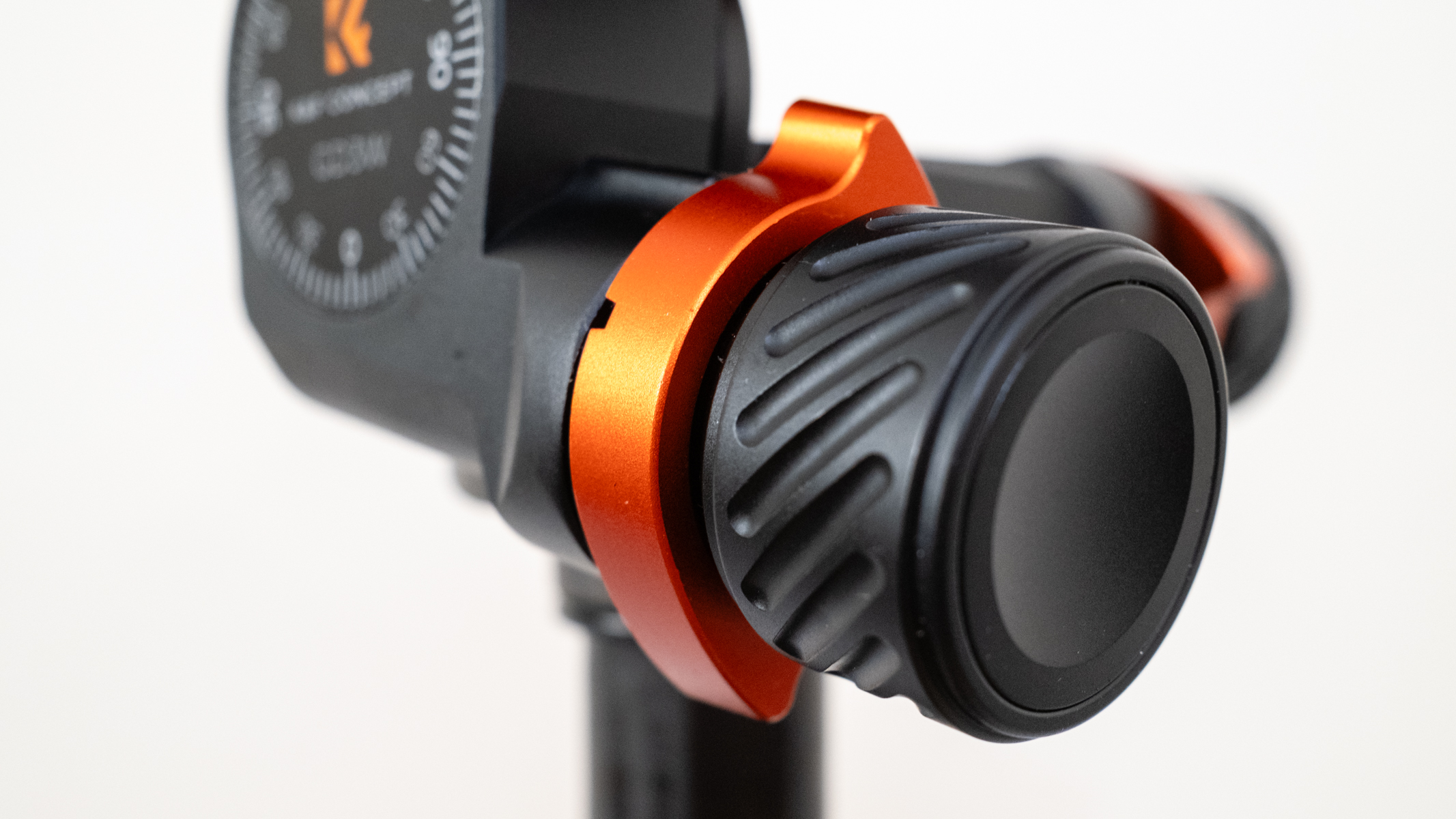

K&F Concept 3-Way Geared Tripod Head knob close up

(Image credit: James Abbott)

The K&F Geared Head is made of machined aluminium so it looks and feels like a quality head. It weighs in at 1.81lbs / 810g, while the maximum load capacity is 13.2lbs / 6kg. This is more than enough for the camera and lens combinations you’d use with the head, but it’s also significantly lower than higher-end heads of this type.

I own an expensive geared ball head, which costs more than twice as much as the K&F 3-Way Geared Tripod Head. You might be thinking that this is an unfair comparison, which it is in some ways, but it does highlight that while the K&F Geared Head is well-made, it has some way to go to be considered exceptional. This also goes for the smoothness of operation when compared to more expensive heads.

The overall design is standard for a geared three-way head; two knobs control vertical and horizontal tilt, while a third controls the pan movement. Each knob is supported by a spring-loaded quick adjustment knob that when twisted clockwise, allows you to disengage the gear and make larger movements. These are a bright metallic orange and contrast nicely against the black head.

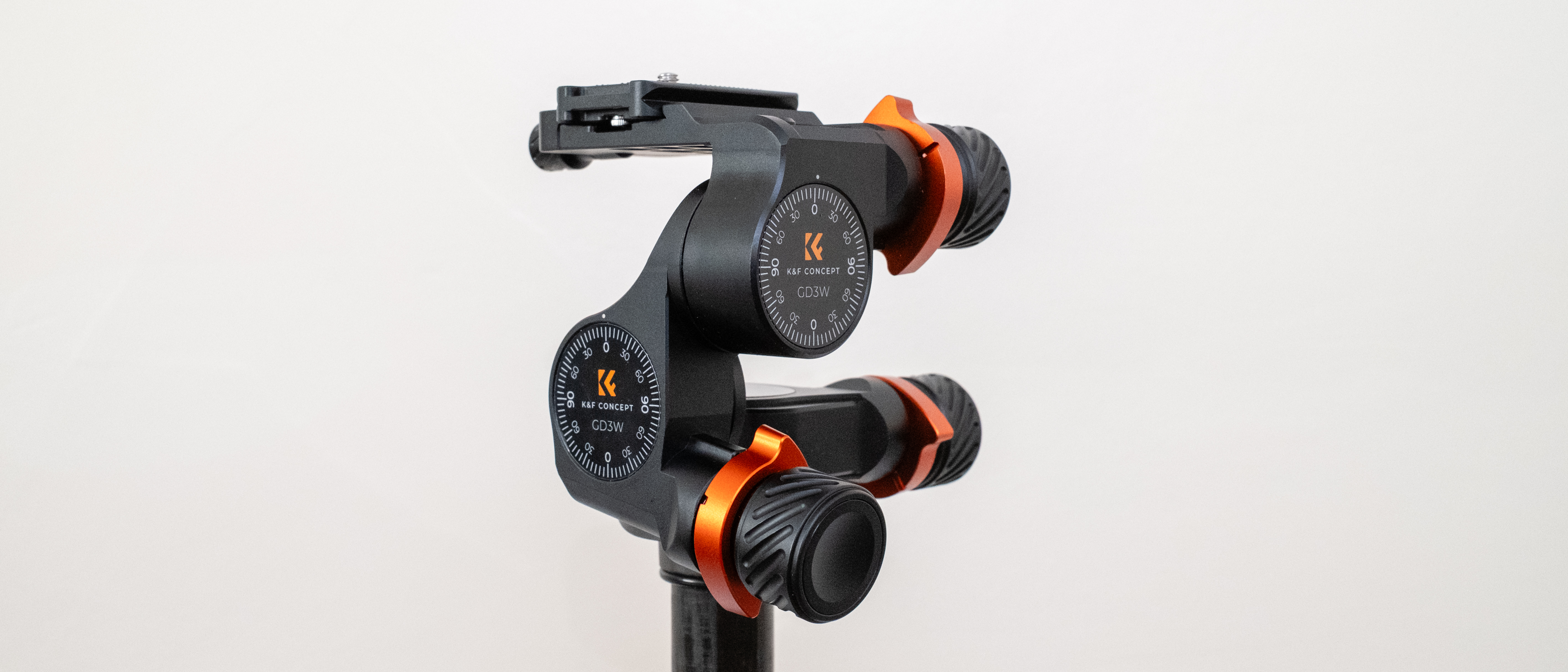

K&F Concept 3-Way Geared Tripod Head side view

(Image credit: James Abbott)

K&F Concept 3-Way Geared Tripod Head: Performance

The head works well in use and can’t be faulted. It undoubtedly lacks the finesse of more expensive geared heads, but the fine-tuning knobs offer good grip and rotate smoothly, while the quick adjustment knobs are comfortable to use for making larger movements when required.

Each axis of movement features an angle scale so you can see the angle of movement. Whether or not this is useful to you will be personal. For me, this isn’t an important or useful feature, but it certainly doesn’t hurt for these to be available and some photographers may wish to replicate camera angles in some situations.

The head also allows for large movements on both the horizontal and vertical axes, so you won’t be limited when composing your shots. The base can also be rotated 360 degrees. For most of the types of photography you’d use a geared head for, many photographers would use an L-bracket and this head features an Arca Swiss plate, which is compatible with L-brackets.

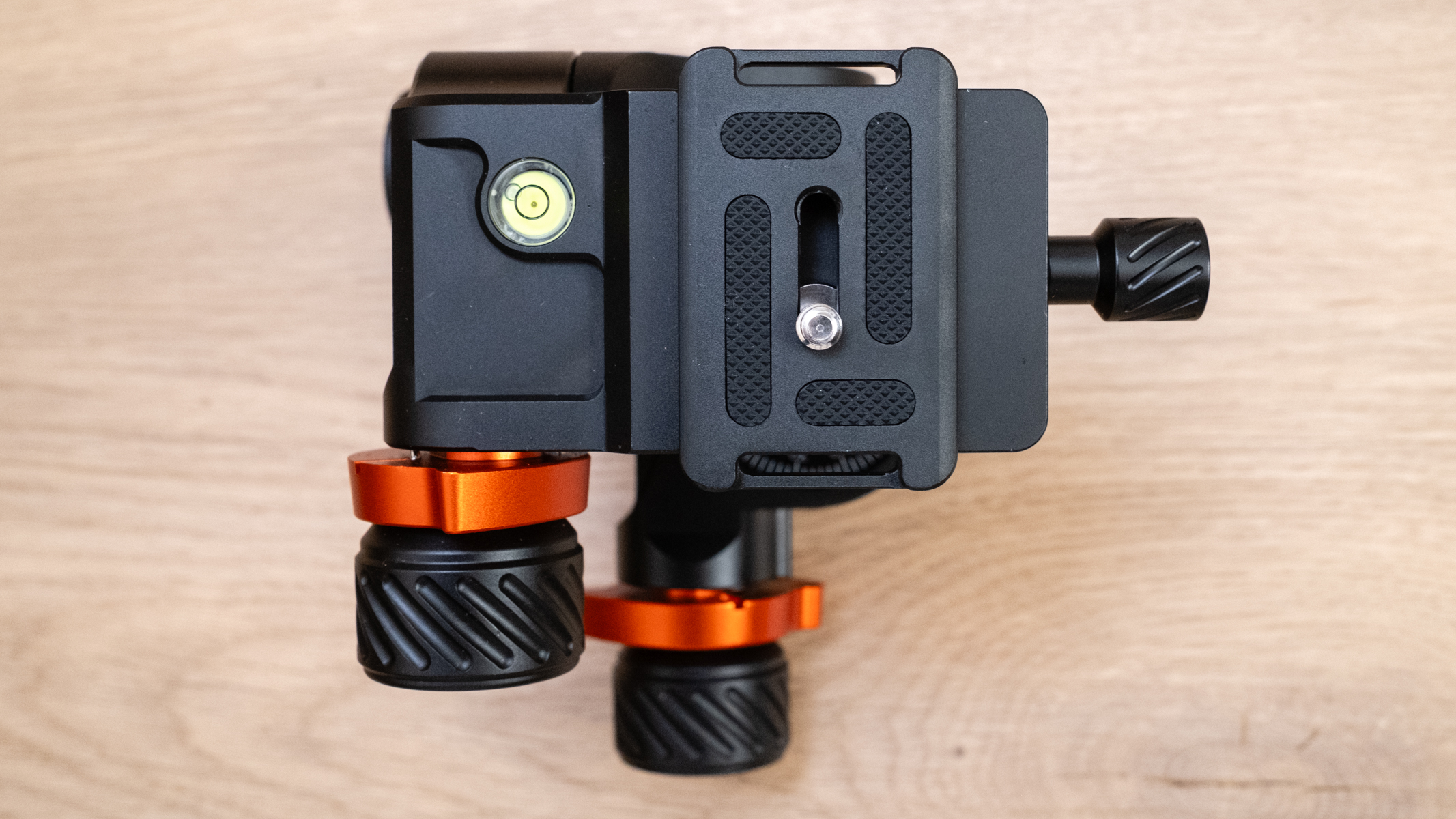

K&F Concept 3-Way Geared Tripod Head top view

(Image credit: James Abbott)

K&F Concept 3-Way Geared Tripod Head: Verdict

The K&F Concept 3-Way Geared Tripod Head is a budget option that does exactly what it’s designed to do and does it well. Build quality is good and operation is smooth thanks to the fine-tuning knobs and the quick adjustment knobs that work well. The K&F Geared Head certainly isn’t as impressive as higher-end and more expensive geared heads and is more expensive than some bigger-name competitors, but it remains an attractive option.

Swipe to scroll horizontally

Features

★★★★☆

No bells or whistles, but everything you need in a geared head is available.

Design

★★★★☆

Aluminium construction in black with orange accent parts and an overall solid build quality.

Performance

★★★★☆

The head functions smoothly as you’d expect and offers precise geared movements

Value

★★★☆☆

Slightly more expensive than some bigger brand alternatives.

Alternatives

Novoflex Qube Goniometer Head Pro-Kit
Novoflex Qube Goniometer Head Pro-Kit: at digitalcameraworld.com

If you’re looking for a premium geared head offering exceptional build quality and precision in a compact head, the Novoflex Qube Goniometer Head Pro-Kit could be exactly what you’re looking for.

Manfrotto  XPRO Geared 3-way Head
Manfrotto XPRO Geared 3-way Head: at digitalcameraworld.com

The Manfrotto XPRO Geared 3-way Head is a similar design to the K&F Geared Head but is slightly less expensive and uses triggers for fast adjustments rather than metal knobs which some people will prefer.
