Digiscoping: How to attach your D-SLR to a spotting scope and the settings to use

Digiscoping: How to attach your D-SLR to a spotting scope
(Image credit: Chris Nutter)

Normal 400mm or 500mm telephoto lenses aren’t powerful enough to get close enough to many wild animals. However, digiscoping, where you attach your D-SLR or mirrorless camera to a spotting scope (opens in new tab), can give an equivalent magnification to an 800mm lens or more. To do this you will need an adapter, which are made by many of the main scope manufacturers. Most adapters have a ‘universal’ attachment, known as a T2 mount, that are available in a range of camera fittings.

Spotting scopes don’t offer the automatic functions such as focus or a variable aperture that you’d have with a telephoto lens, and the effective aperture of most is between f/8 and f/16, so you’ll need plenty of light to use them effectively. You’ll need to use high ISO settings to get shutter speeds fast enough to prevent blur. Despite these limitations, digiscoping offers a relatively accessible way to get huge focal length optics for your D-SLR.

• See The best spotting scopes in 2021 (opens in new tab)

If you're into birding, you'll want to try digiscoping with a spotting scope, to get the best magnification (Image credit: Chris Nutter)
(opens in new tab)

How to attach your D-SLR to the scope and the settings to use (step-by-step tutorial)

(Image credit: Chris Rutter)
(opens in new tab)

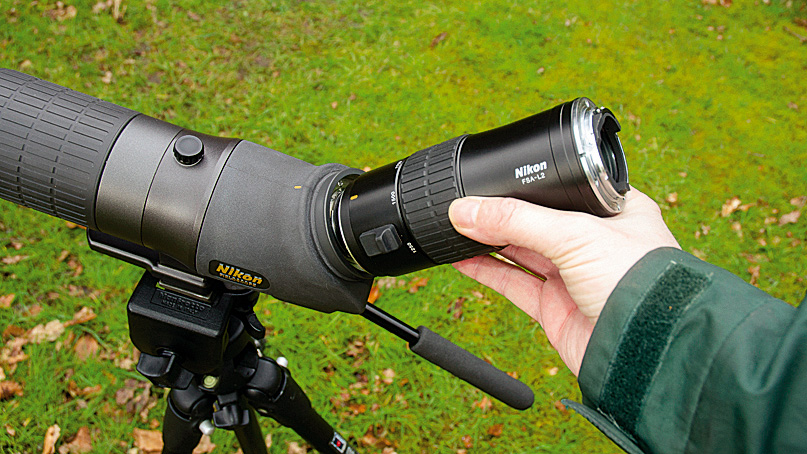

01. Attach the adapter

Before you can attach your camera to any spotting scope, you’ll need to fit an adapter. There are various types for different telescopes and manufacturers. With the Nikon adapters you take off the standard viewing eyepiece and fit the FSA-L2 (opens in new tab) or FSA-L1 (opens in new tab).

(Image credit: Chris Rutter)
(opens in new tab)

02. Attach your camera

Once the adapter is fitted to the scope, you can attach the camera. With the Nikon versions the camera fits straight onto the adapter, but for other makes of scope and adapter you’ll also need to use a T2 adapter in Nikon F fitting to fit the camera to the adapter.

(Image credit: Chris Rutter)
(opens in new tab)

03. Camera settings

With no electronic connections, the range of exposure modes and metering using any adapter is limited. On most cameras you can use manual or aperture-priority modes, and centre-weighted metering. In changing light conditions, aperture-priority mode is best.

(Image credit: Chris Rutter)
(opens in new tab)

04. Auto ISO

You can’t adjust the aperture when using a spotting scope, but the automatic ISO setting allows your camera to adjust the exposure without relying simply on the shutter speed. Limit the ISO to 1600, and set the minimum shutter speed to 1/500 sec to get sharp results.

(Image credit: Chris Rutter)
(opens in new tab)

05. Frame your shot

Using the huge magnifications available with digiscoping, finding and framing your subject can be a challenge. Move the telescope until you spot an obvious feature in the viewfinder, look where it is in relation to the area that you want to shoot, then reframe the image.

(Image credit: Chris Rutter)
(opens in new tab)

06. Focusing

You will have to use manual focus, and this can be difficult to judge due to the limited depth of field and the small maximum apertures of most spotting scopes. Roughly focus the scope on the area you want to be sharp, then fine tune your focusing slowly until it is spot-on.


Using Live View can help you frame your shots and also focus accurately. It’s also easier to keep an eye open for wildlife when you haven’t got your eye pressed against the viewfinder.

Digiscope adapters

There are several ways of attaching your D-SLR to a scope. The best option is a telephoto adapter that replaces the eyepiece of the scope. The cheaper option is an adapter that pushes over the eyepiece of the scope. Here are some options:


Nikon offers two adapters for its scopes, the Nikon FSA-L1 (opens in new tab) for its Fieldscope range and FSA-L2 (opens in new tab) for its EDG range. Apart from fitting different scopes, the main difference between these is that the FSA-L2 offers a zoom facility giving a focal length range of up to 1750mm with the EDG85 scope, while the cheaper FSA-L1 is a fixed magnification of between 800m to 1000mm, depending on the Fieldscope that you use.


Opticron’s 40215 Telephotoadapter (opens in new tab) replaces the eyepiece of the scope, and the firm also produces adapters that fit over the eyepiece. Both types require a T2 mount (£20). Opticron products are not available in the US.


Swarovski produces a telephoto adapter (TLS 800) that replaces the eyepiece, and a two-piece adapter (TLS Apo) that fits over the eyepiece. Both require a T2 mount.
