Ugreen Revodok Maxidok 17-in-1 review: Unrivaled performance, but it's let down by these two things

The Maxidok 17-in-1 is the most comprehensive docking station Ugreen has ever made. With compatibility for three displays, superfast 120Gbps data transfer, 240W total power output, and built-in M.2 storage expansion, this dock is a serious beast, comparable with the 4.5-star CalDigit TS5 Plus Thunderbolt 5 Dock.

This 17-in-1 dock is for uncompromising professionals who want access to (almost) every type of connectivity. I say "almost" because there's no native HDMI port. Why Ugreen, why? You could use an adaptor, but that could have repercussions in terms of resolution and quality of output.

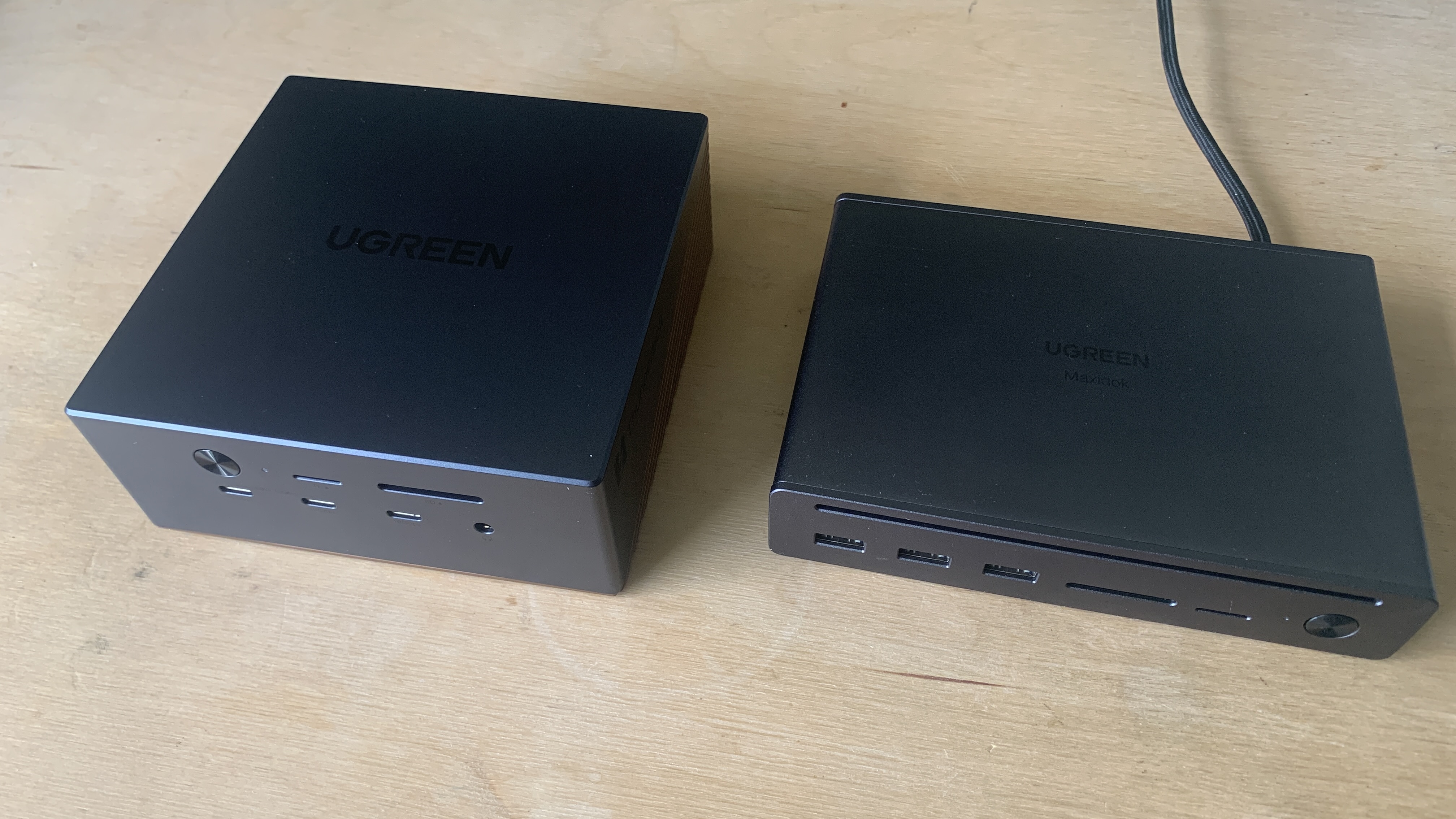

Ugreen also sells a smaller version of this dock with 10 ports and a much smaller overall size. I gave the Ugreen Revodok Maxidok 10-in-1 4.5 stars and called it a "great solution for photographers". The 17-in-1 alternative steps it up in every conceivable way, and in my testing I was interested to find out why anyone would go for the 17-in-1 rather than the 10-in-1.

Revodok Maxidok 17-in-1: Specifications

Revodok Maxidok 17-in-1: Design & Handling

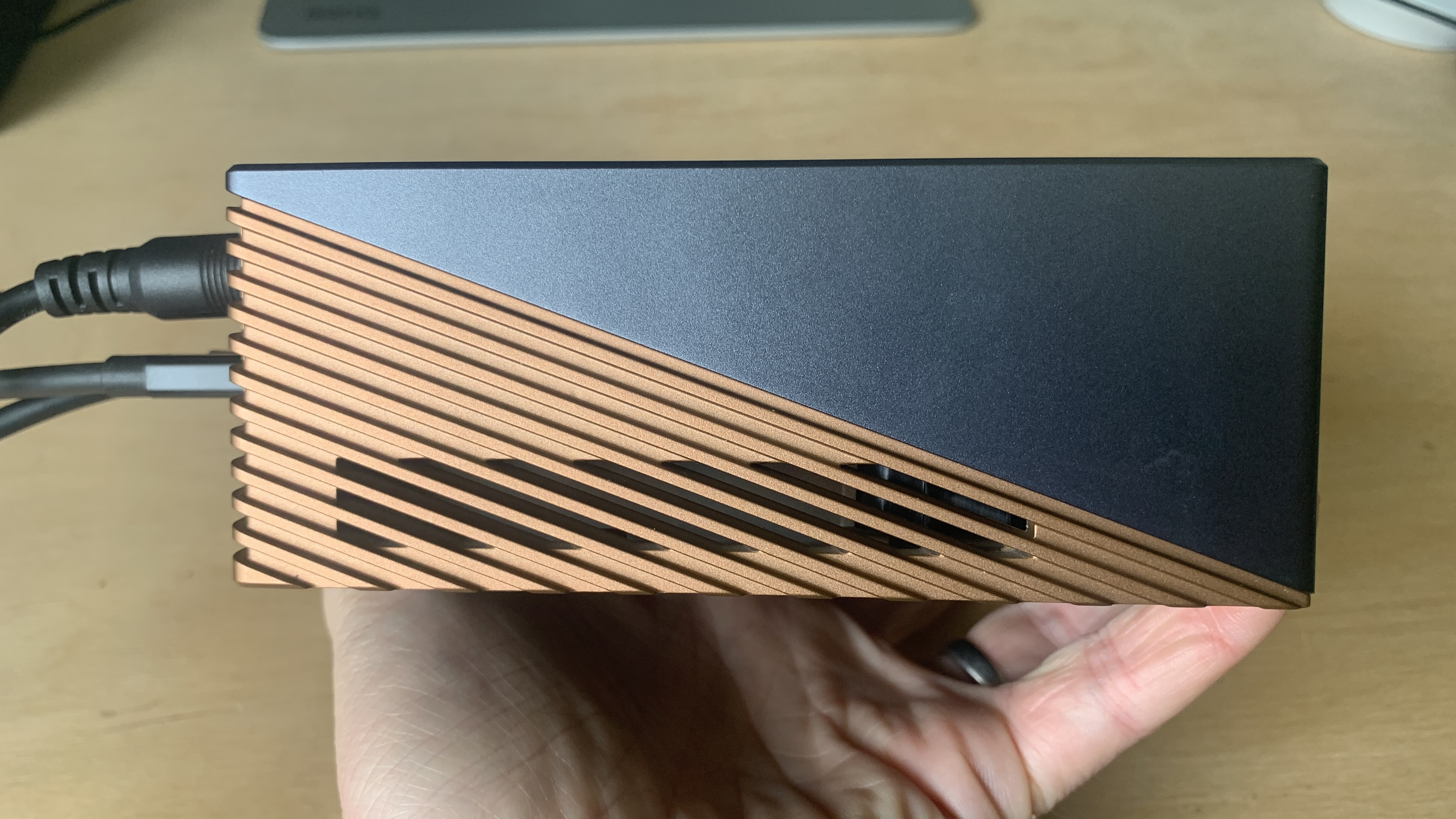

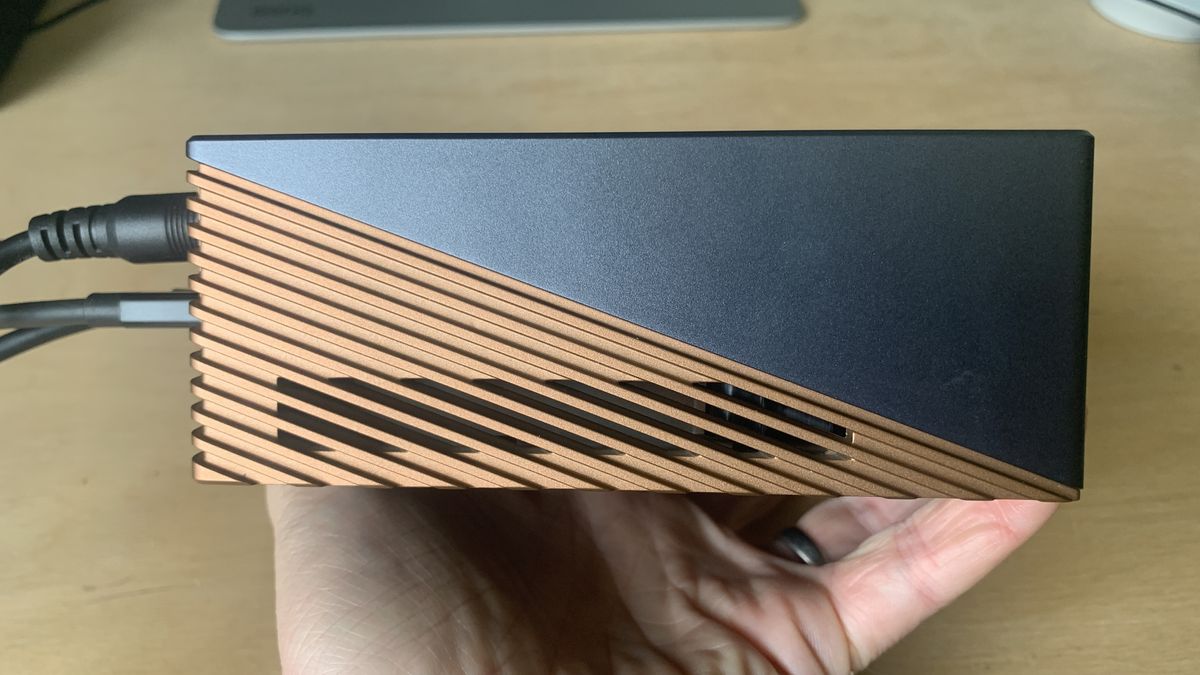

The Maxidok 17-in-1 dock features a rugged, industrial aesthetic, but even though it's part of the Revodok line-up, it doesn't follow many of the design elements that are found in the rest of the lineup. The most obvious difference is the distinctive copper-colored strip which angles from front to back, accentuating the rear port panel.

But more than providing a stark contrast to the space gray chassis, this ribbed strip acts as a passive heatsink, dissipating heat across a larger surface area to minimize the requirement for the internal fan to kick in. I think it looks fantastic, and the fact that it serves a purpose is even better.

The other primary difference is that the aluminum alloy which Ugreen has landed on for the 17-in-1 dock is much more plastic-feeling than the 10-in-1. As a result, it feels a lot less premium, and even though it's thick enough to remove any possibility of deformation or cracking, it does feel a little substandard. I can only imagine that Ugreen did this to keep the overall weight down but I think that was unnecessary.

Image 1 of 5

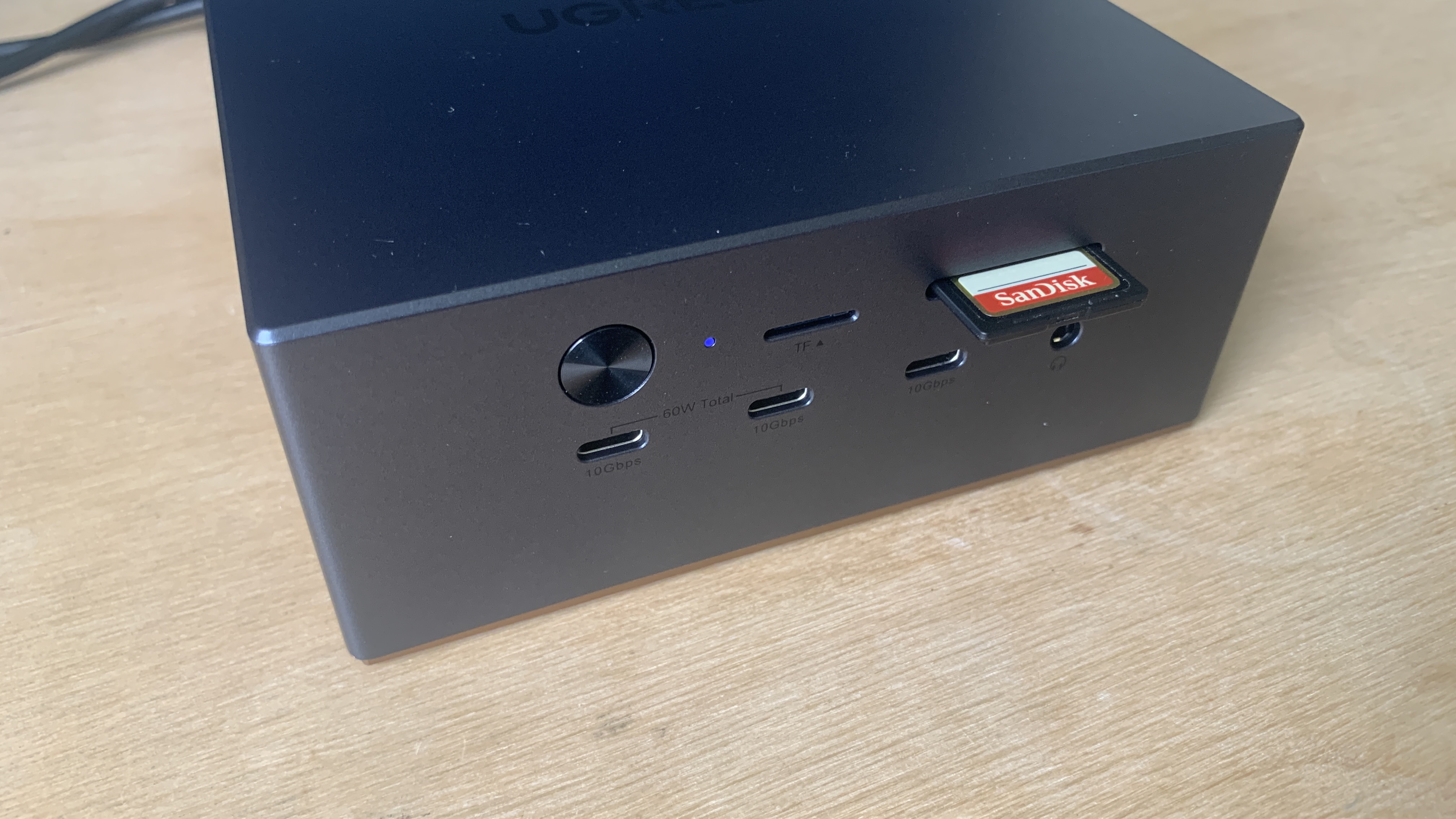

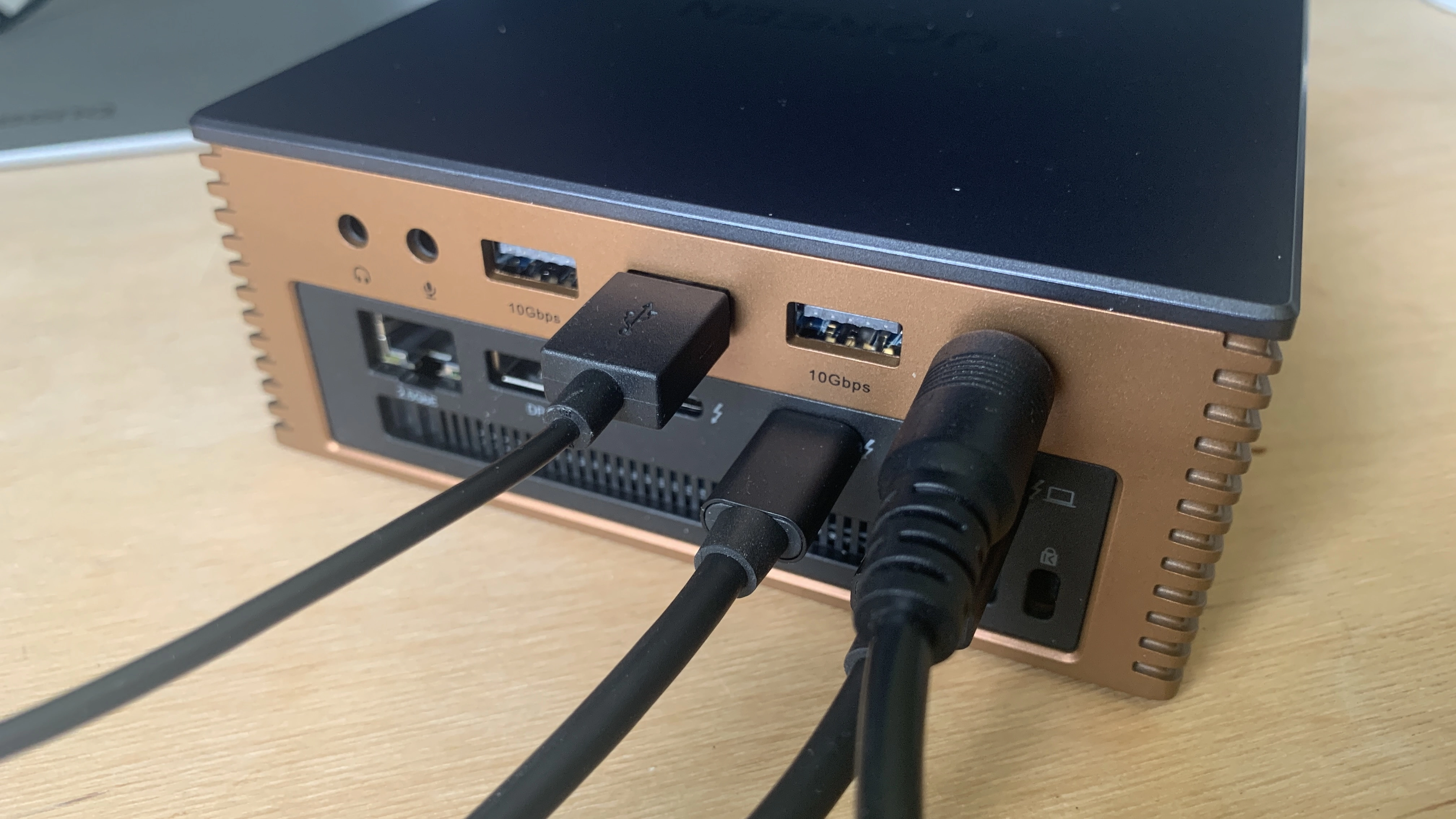

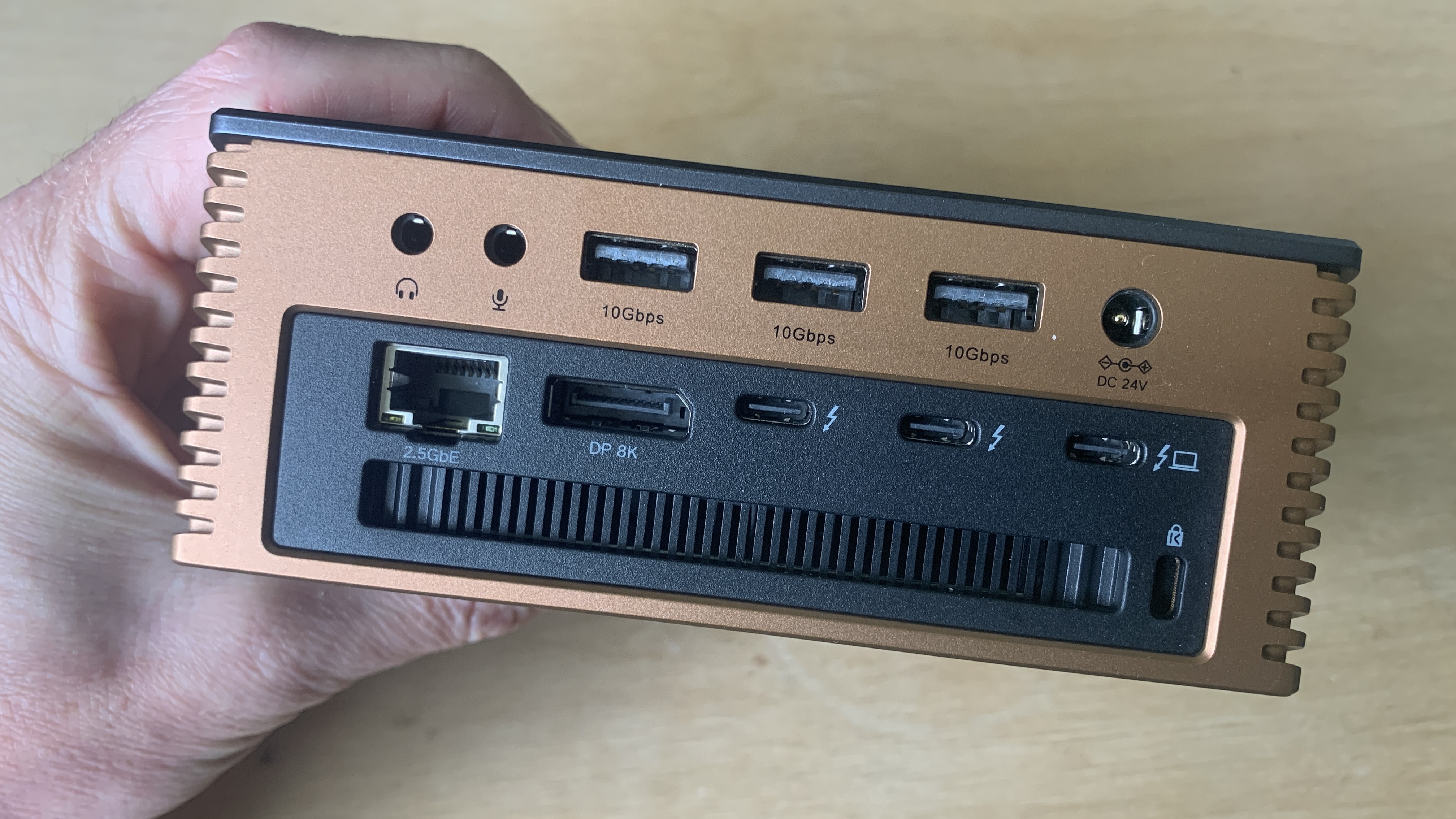

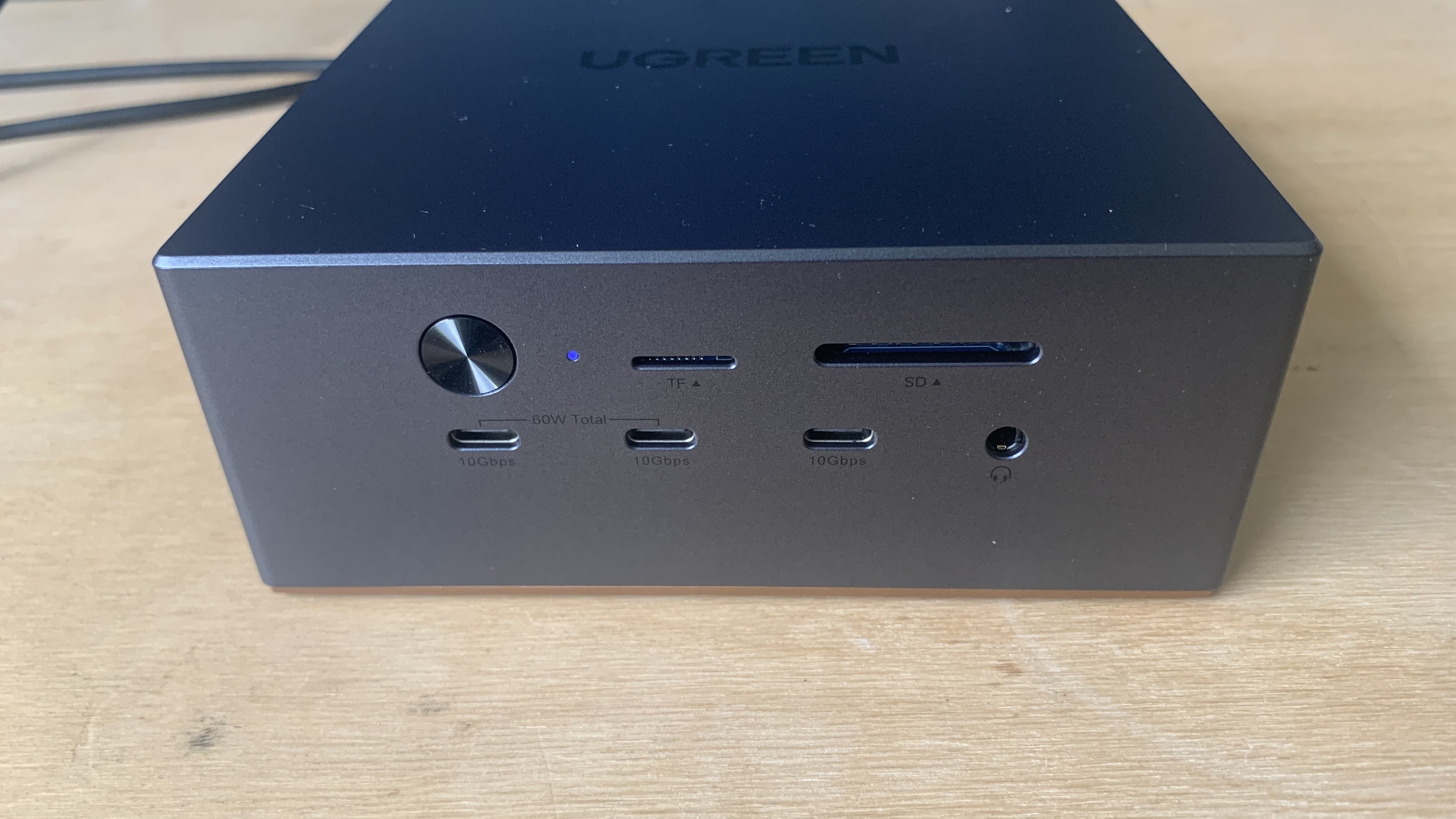

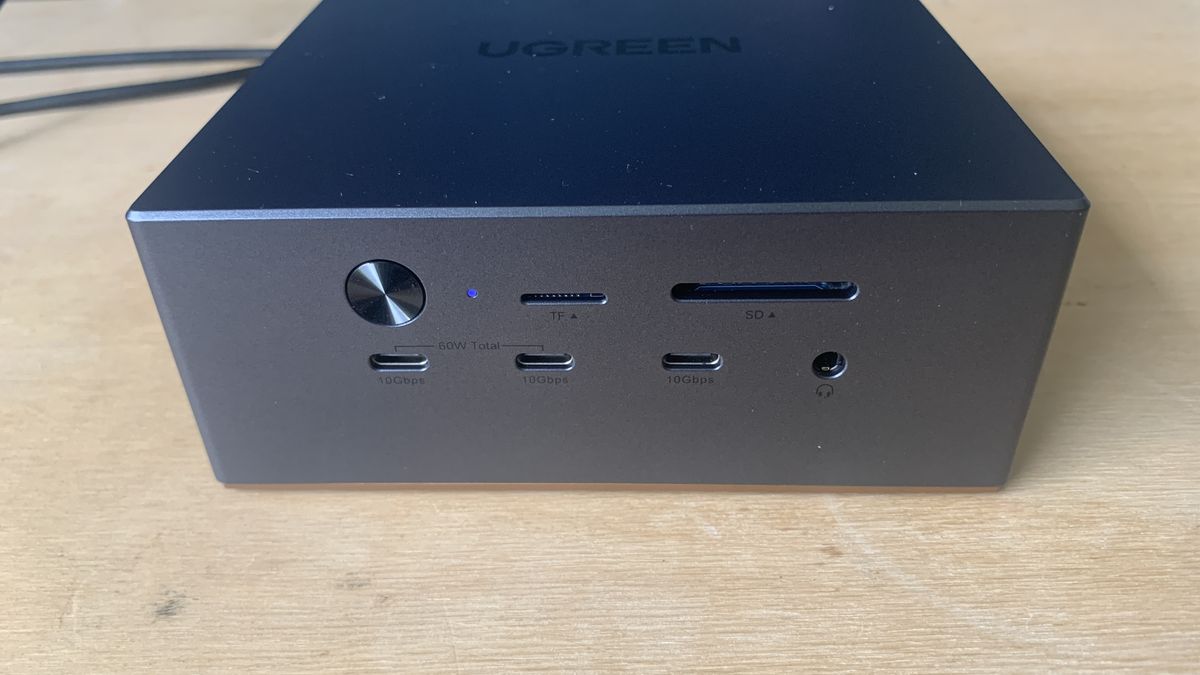

Moving on to ports, at the front, the 17-in-1 features USB-C ports for device charging and data transfer. The SD and TF ports are also located on the front panel so you're not rooting around the back every time you need to transfer media from your camera. At the back you'll find more permanent connections, such as the DisplayPort, Ethernet, and Thunderbolt 5 USB-C ports.

The lack of a native HDMI port is disappointing, even though this is probably in favor of a DisplayPort to cater to professional, multi-monitor workstations rather than consumer setups. I still think they could have included one.

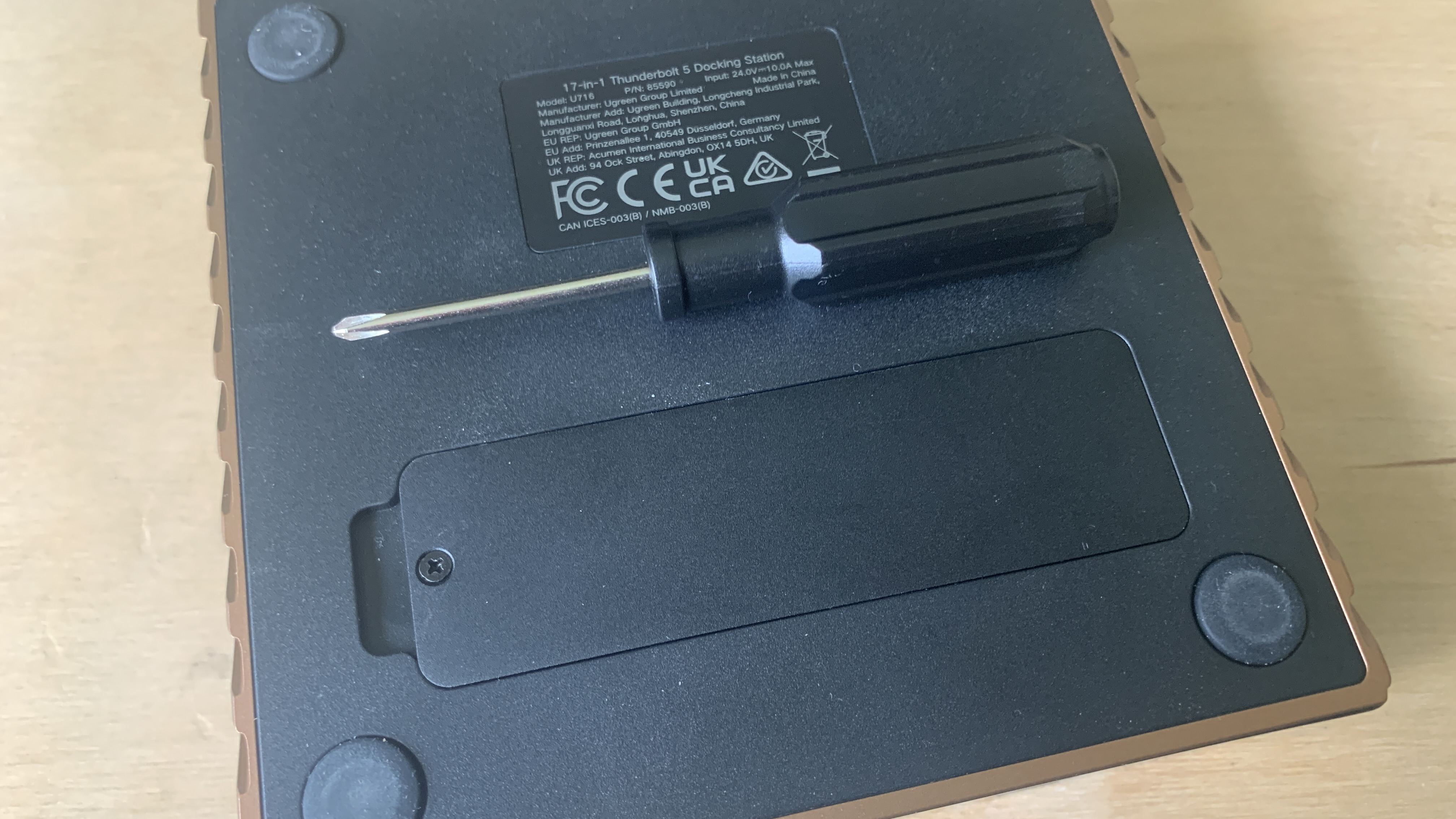

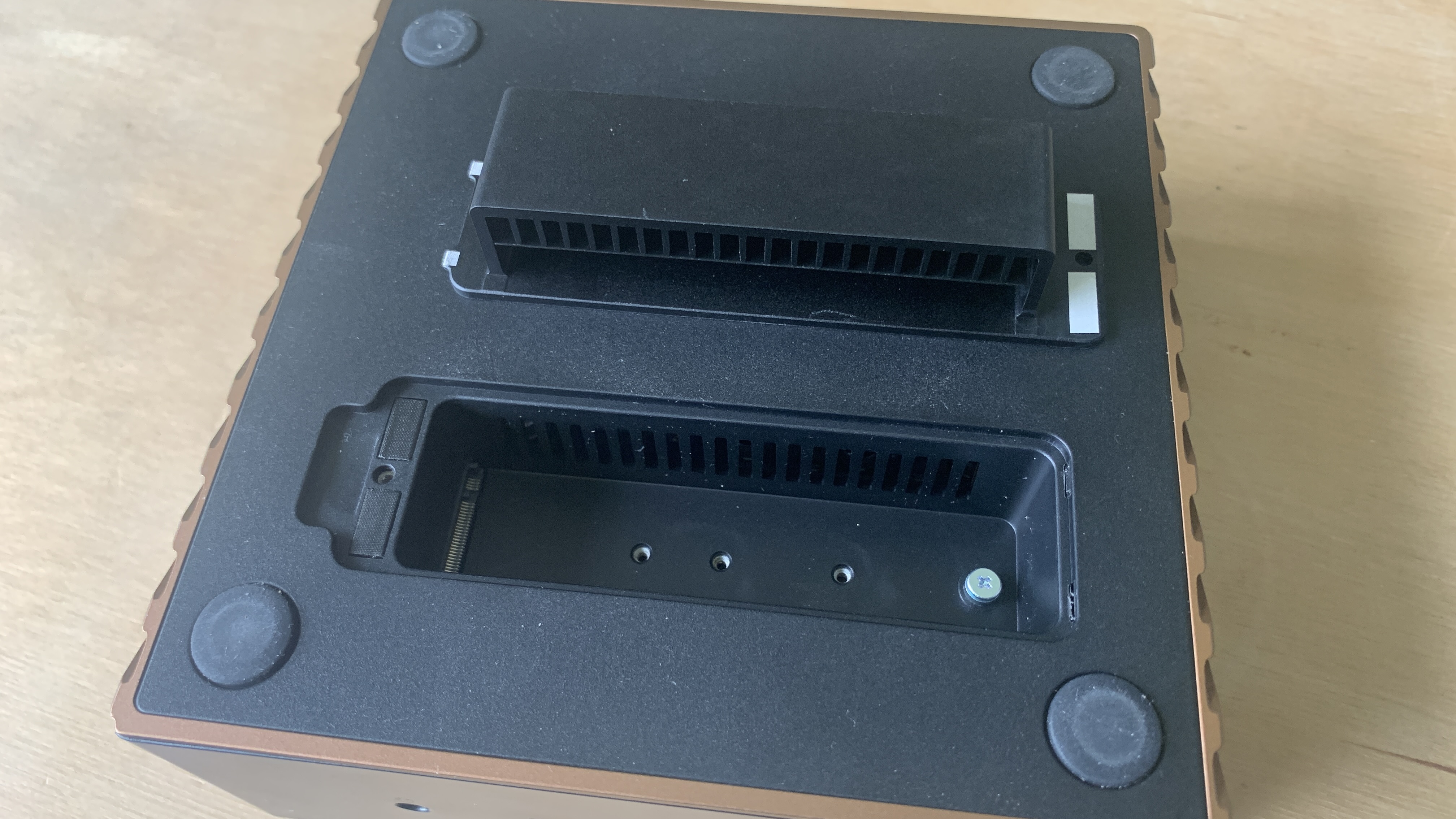

More positively, on the base there is an access panel that provides access to an M.2 NVMe SSD slot, allowing for up to 8TB of internal storage without disrupting the visible sides of the dock. This feature is lacking on the CalDigit TS5 Plus Thunderbolt 5 Dock and helps to set Ugreen's offering apart from the competition.

Revodok Maxidok 17-in-1: Performance

I began by testing the display technology of the Maxidok 17-in-1. This involved using the provided USB-C cable to connect the dock to the MacBook Pro, followed by another USB-C cable to connect the dock to my 4K BenQ Creative Pro monitor. The dock instantly recognized the monitor and delivered a 4K image from my MacBook Pro.

The picture was clear and consistent, and even though it maxed out at 100Hz rather than 144Hz, it will be sufficient for almost all types of creative work. The dock is capable of 8K output to two monitors and 4K to three displays. I wasn't able to test these due to a lack of 8K monitor resolution and not having three displays in my setup. I'm confident, though, that the dock will deliver as per its specs.

Another key function of any dock is power delivery. The Maxidok 17-in-1 can deliver a 140W single output and 240W across multiple ports. I was able to charge my laptop, phone, smartwatch, and keep a number of peripherals powered, all at the same time. My MacBook Pro is limited to 96W charging, and the Maxidok had absolutely no problem delivering that.

Image 1 of 2

As for data transfer, most creatives will need to move files between laptops, SD cards, TF cards, and external drives. All of this is possible with the Maxidok 17-in-1. But more than that, the up to 120Gbps bandwidth means that you can access and edit files directly from an SSD rather than needing to transfer them for local access.

The dock features an internal fan, although at no point in my testing did it ever get louder than a quiet hum. With music playing, you'll never even notice it. This goes to show how well designed the unit is and how effective the case is at dissipating heat.

Revodok Maxidok 17-in-1: Verdict

The Ugreen Revodok Maxidok 17-in-1 is a powerful, high-end docking station designed for creative professionals who require uncompromising performance and expansive connectivity. With blistering 120Gbps bandwidth, 140W laptop charging, and the ability to drive triple 4K displays, the dock excels in high-demand environments. In testing, its performance remained rock-solid, maintaining consistent 4K output and managing heat effectively through a clever copper heatsink design that keeps the internal fan down to a quiet hum.

As good as it is, the Maxidok 17-in-1 is let down by a couple of things. The first is the omission of a native HDMI port, forcing users to rely on DisplayPort or adapters, which may frustrate those with standard consumer monitor setups. The second is that the aluminum alloy casing feels surprisingly more like plastic, lacking the premium tactile finish found on Ugreen’s smaller models. It is also a physically "chunky" unit with a significant price tag. However, for professionals who need a hub for fast data transfers, multi-device charging, and internal storage expansion, it represents one of the very best on the market at the moment.
