Vanguard LVL Universal Tripod Levelling Adapter review: coming in one shape but several sizes, it aims to help us all keep a level head

The Vanguard LVL Universal Tripod Levelling System takes a previously featured component from a Vanguard tripod and adapts it to cater to the masses. It’s useful for stills and great for video

Vanguard LVL Universal Tripod Levelling System
(Image: © Matthew Richards)

Digital Camera World Verdict

I like that the Vanguard LVL Universal Tripod Levelling System aims to give a universal solution to a universal problem, whichever tripod legs and head I’m using. Simply slotting in the LVL between the legs and head enables me to keep everything on the level for panning, which is great for shooting video and panoramas.

Pros

  • +

    Solid build quality

  • +

    Quick and easy to use

  • +

    Wide range of sizes

  • +

    Competitively priced

Cons

  • -

    Unnecessary for some of us

  • -

    Only one thread adapter supplied

Why you can trust Digital Camera World Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out how we test.

Vanguard doesn’t need much by way of introduction. The company has been making tripods and other accessories for photographers for about 40 years, growing in knowledge and expertise along the way, and seeking to supply solutions to changing trends and requirements.

Trends of late include hybrid shooting of both stills and video, along with content creation. These bring a particular problem in that, when panning a camera, you need your tripod to be absolutely level. If the legs are on the slant and you compensate by angling the head to level things up, everything goes wonky when you start panning.

Kits that get around the problem include the Vanguard Alta Pro 3VRL 303CV, with its removable levelling system, and the Vanguard VEO 3+ 303CBS which has a dual-axis ball head, the uppermost panning mechanism keeping the camera level when panning. The advantage of the Vanguard LVL, based on a levelling system featured in the Vanguard Alta Pro 3VL 304CT legs, is that you can use it with any set of tripod legs and head that you already have, adding the appropriately sized version between the legs and head to keep everything on the level.

As such, it aims to suit almost any of the best tripods for photographers, the best travel tripods and the best tripods for videographers.

Available in five different sizes, the LVL range is designed to suit pretty much any tripod, from compact travel systems up to full-sized, heavy-duty supports. (Image credit: Matthew Richards)

Vanguard LVL: Specifications

Swipe to scroll horizontally

Max load capacity

25kg / 55lbs

Vertical tilt

+/-15 degrees

Rotation

360 degrees

Spirit/bubble levels

1 bubble

Base diameter

45mm / 1.8"

Base attachment thread

3/8" with 1/4" adapter

Head attachment thread

1/4" (fits 3/8" with adapter)

Dimensions (LxWxH)

69x50x39mm / 2.7x2.0x1.5"

Weight

140g / 0.3lbs

Vanguard LVL: Price

I grabbed one of the first Vanguard LVLs to come to the market, its launch in the UK being spurred on to coincide with The Photo & Video Show of March 2025. Availability in the USA and Australia is likely to be in July/August 2025. I got hold of the LVL-45 version, which is a perfect fit for one of my tripod kits. As per the naming convention, the lower mounting plate has a 45mm diameter, but there are five different sizes available, ranging from a diameter of 42mm up to 75mm, with a corresponding spread in purchase price of £55 up to £100. Pricing is yet to be finalized for other world regions but the RRP for the size range is currently set at $65 to $120 for the USA, and AU$115 to AU$220 for Australia. That makes them pretty good value, size for size, across the range.

Vanguard LVL: Design & Handling

The Vanguard LVL Universal Tripod Levelling System aims to provide an elegant and straightforward solution to a perennial problem. Even so, if you just shoot stills, you probably won’t need it. That’s because if your tripod legs aren’t perfectly levelled, you can adjust any 3-way head, ball head or geared head accordingly, to perfectly level the camera. Level things up, shoot, job done. Things get trickier as soon as you start panning. If you’ve angled the head to compensate for unleveled legs, as soon as you start panning, your horizon starts to tilt. That can be disastrous when you’re shooting video, as well as for stills if you’re panning to take a sequence of shots that you want to stitch into a panoramic image.

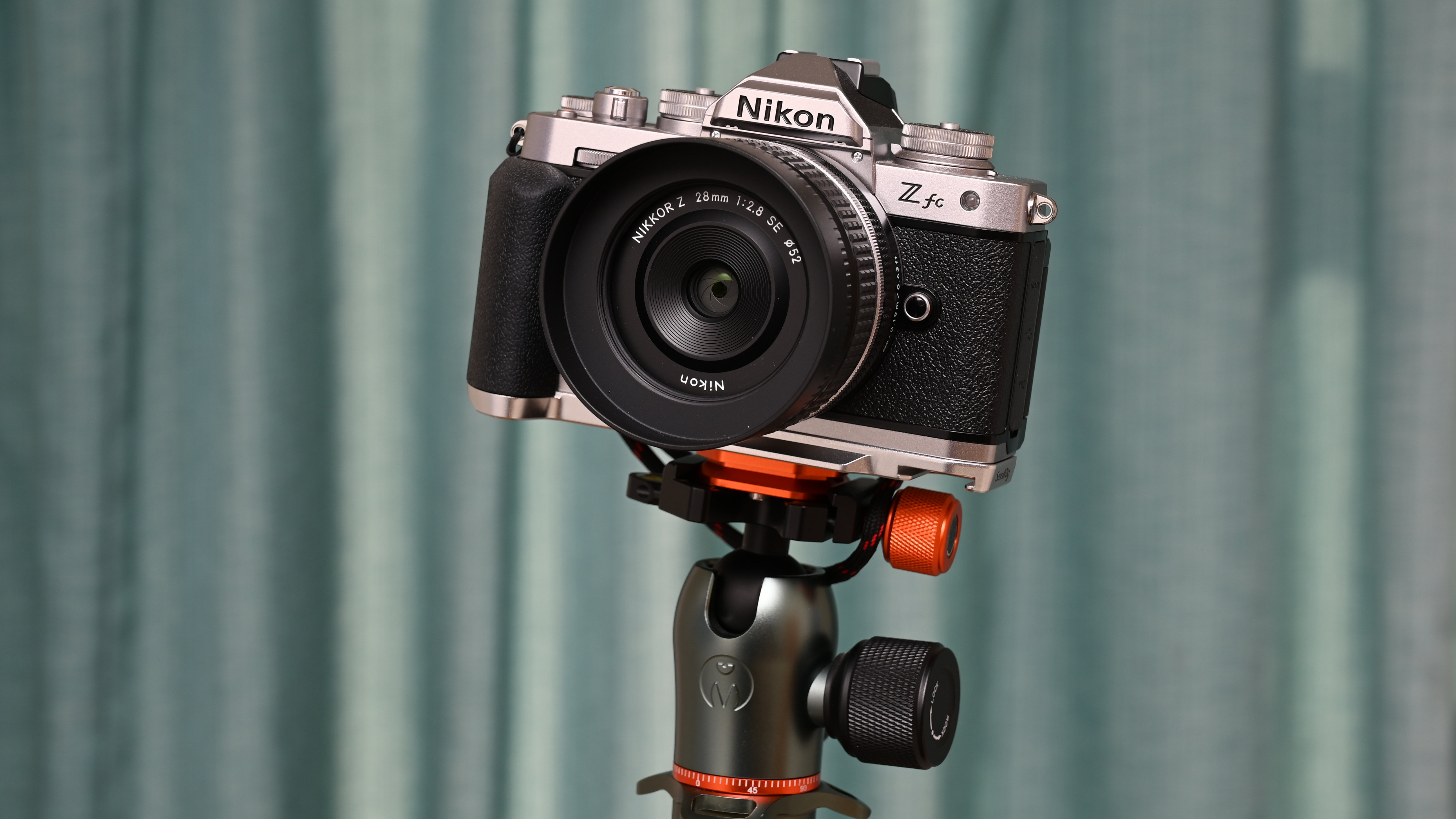

As shown in this example, I’ve adjusted the ball head to level the camera, due to the tripod legs not being perfectly leveled. Subsequent panning of the camera after releasing the head’s pan-only clamp has resulting in a significant degree of unwanted tilt. (Image credit: Matthew Richards)

The Vanguard LVL is designed to sit between the mounting platform at the top of a set of tripod legs and the tripod head above. You therefore need to detach the head from the legs, screw the LVL onto the legs, then attach the head to the top of the LVL. That probably sounds simple enough but one hurdle in making the system ‘universal’ is that different sets of tripod legs with different sizes and payload ratings have different diameters of mounting plates.

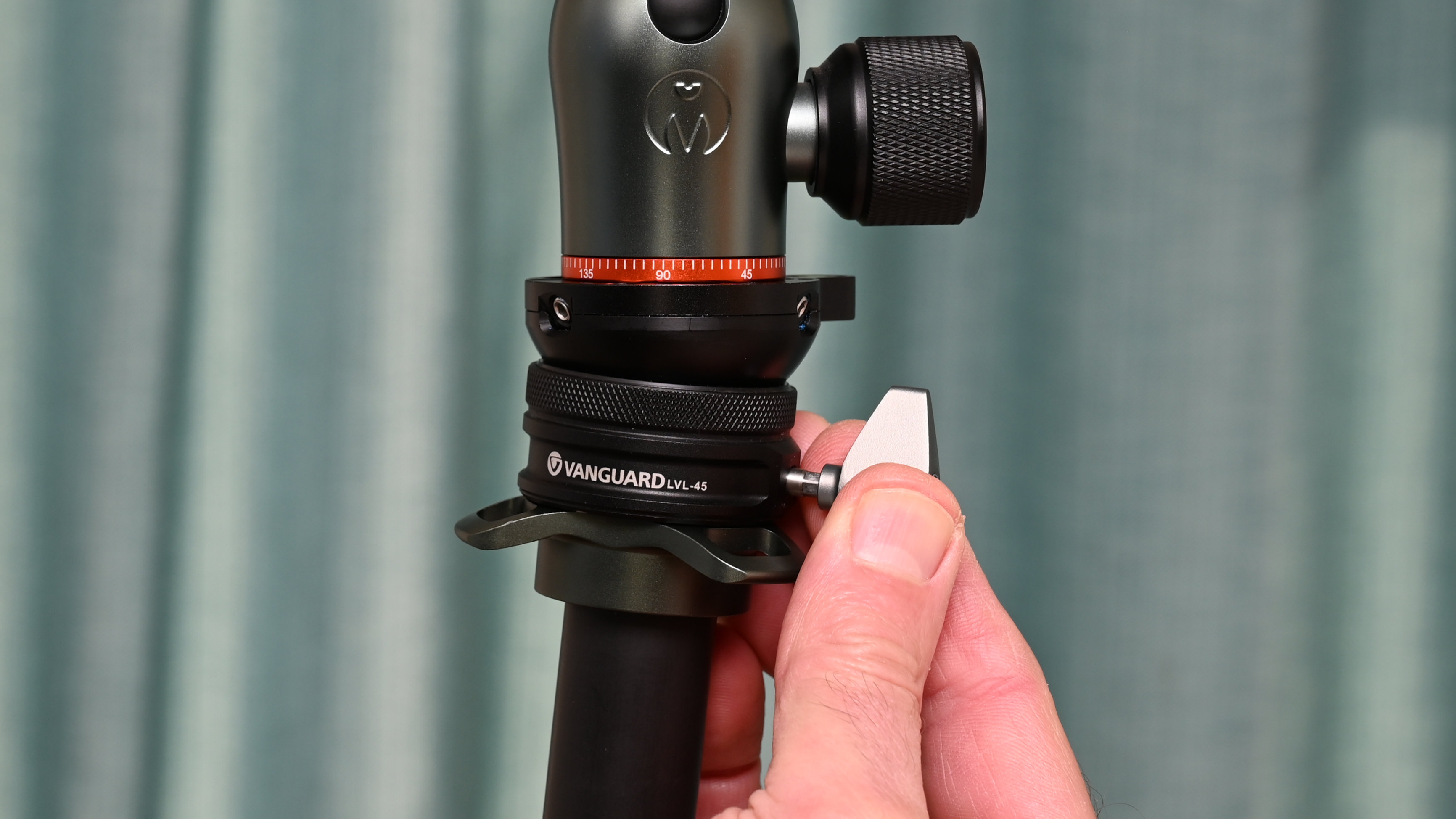

Adding the Vanguard LVL into the mix, it’s easy to level the entire head despite the legs not being leveled. You can then pan the camera and ensure that your horizons stay horizontal. (Image credit: Matthew Richards)

To make the system as universal as possible, the LVL comes in a range of sizes with lower mounting plate diameters of 42mm, 45mm, 55mm, 65mm and 75mm. Working through the range, the diameter of the top plate also increases through 45mm, 50mm, 60mm, 70mm and 80mm respectively. The height grows from 36mm for the smallest edition to 43mm for the largest, and the load capacity increases through 20kg, 25kg, 30kg, 35kg and 40kg.

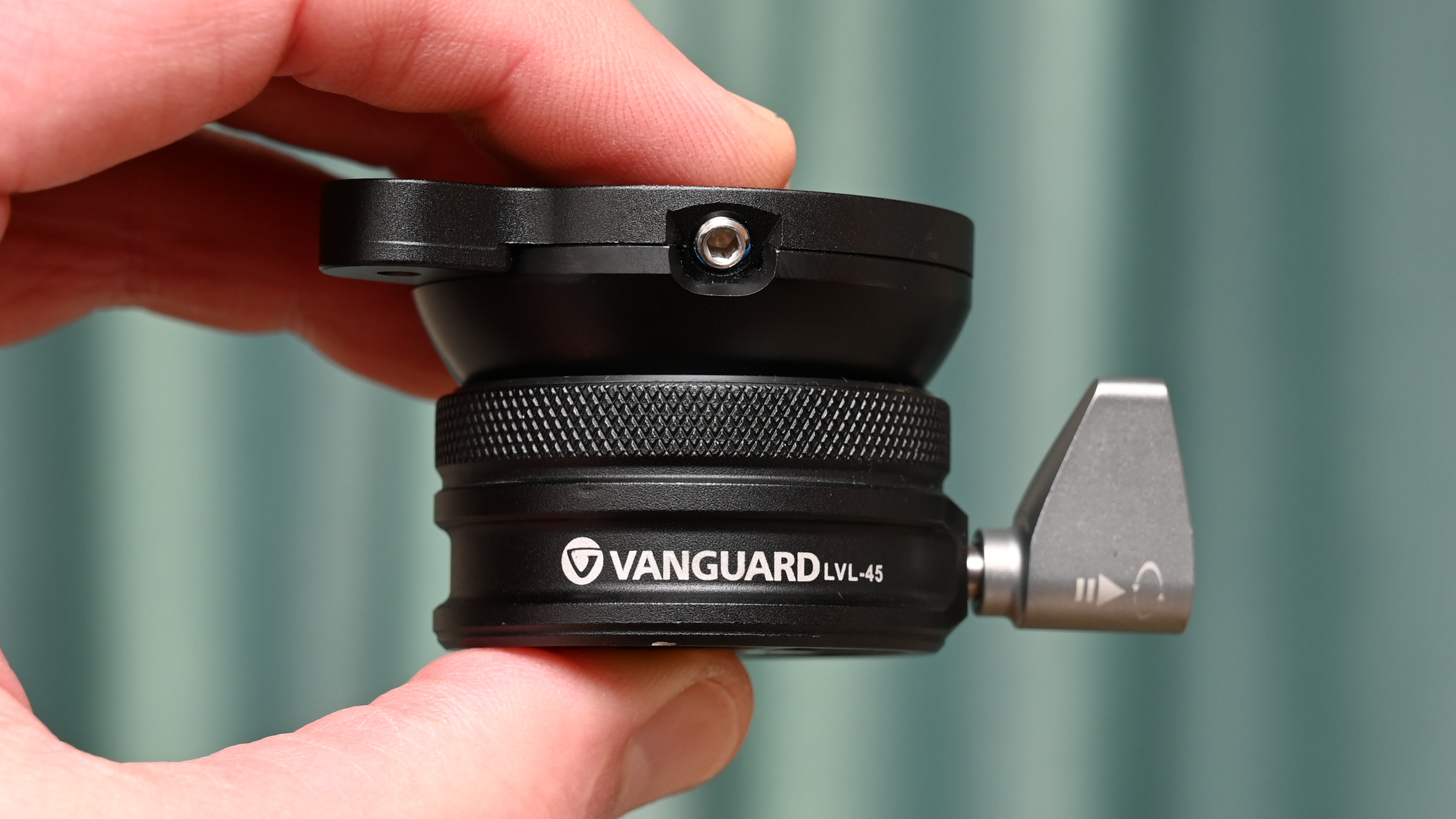

The LVL has a half-bowl profile, the upper section shown here resting in the lower section with no tilt applied. (Image credit: Matthew Richards)

Suffice it to say that there’s a Vanguard LVL to suit a wide range of individual requirements in terms of size and load rating. One thing they all have in common is a full 360 degrees of rotation. All but the smallest LVL-42 enables a maximum of 15 degrees of tilt in any direction, whereas this drops to 13 degrees for the 42mm edition.

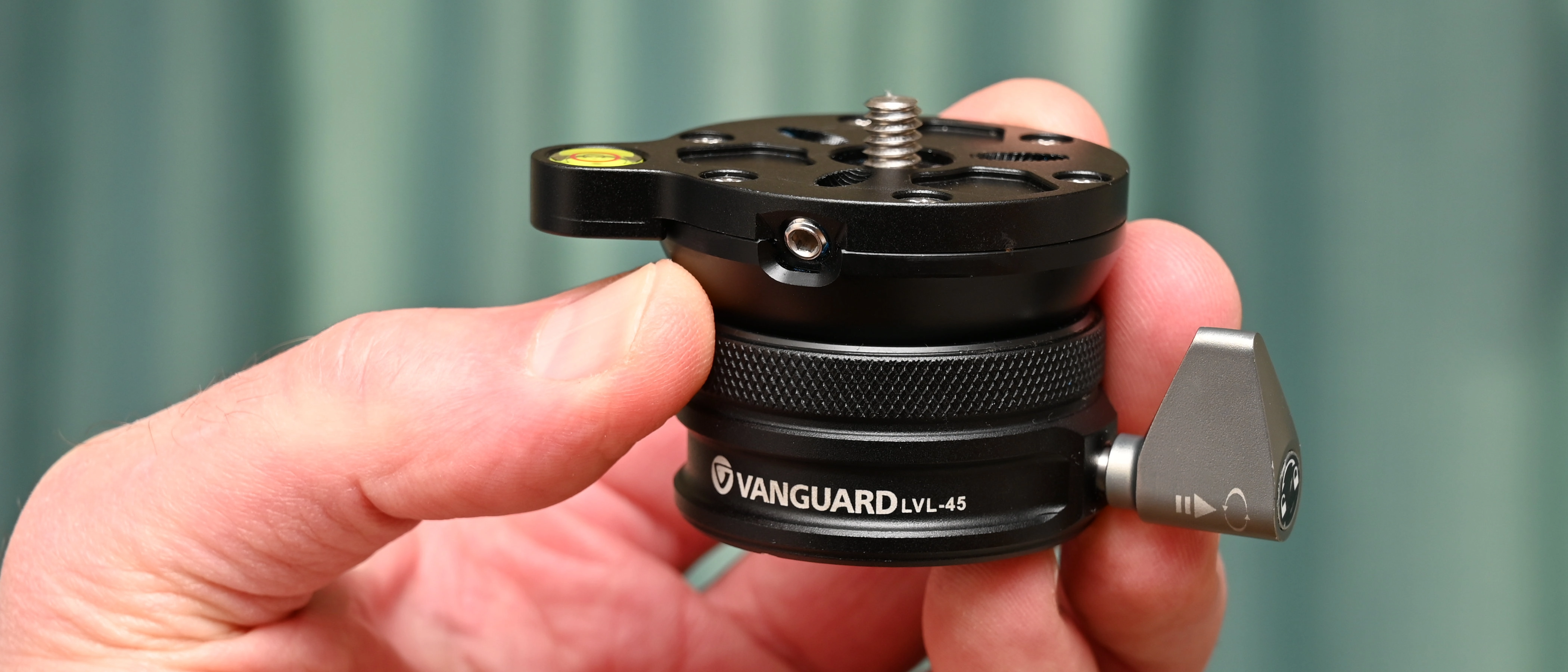

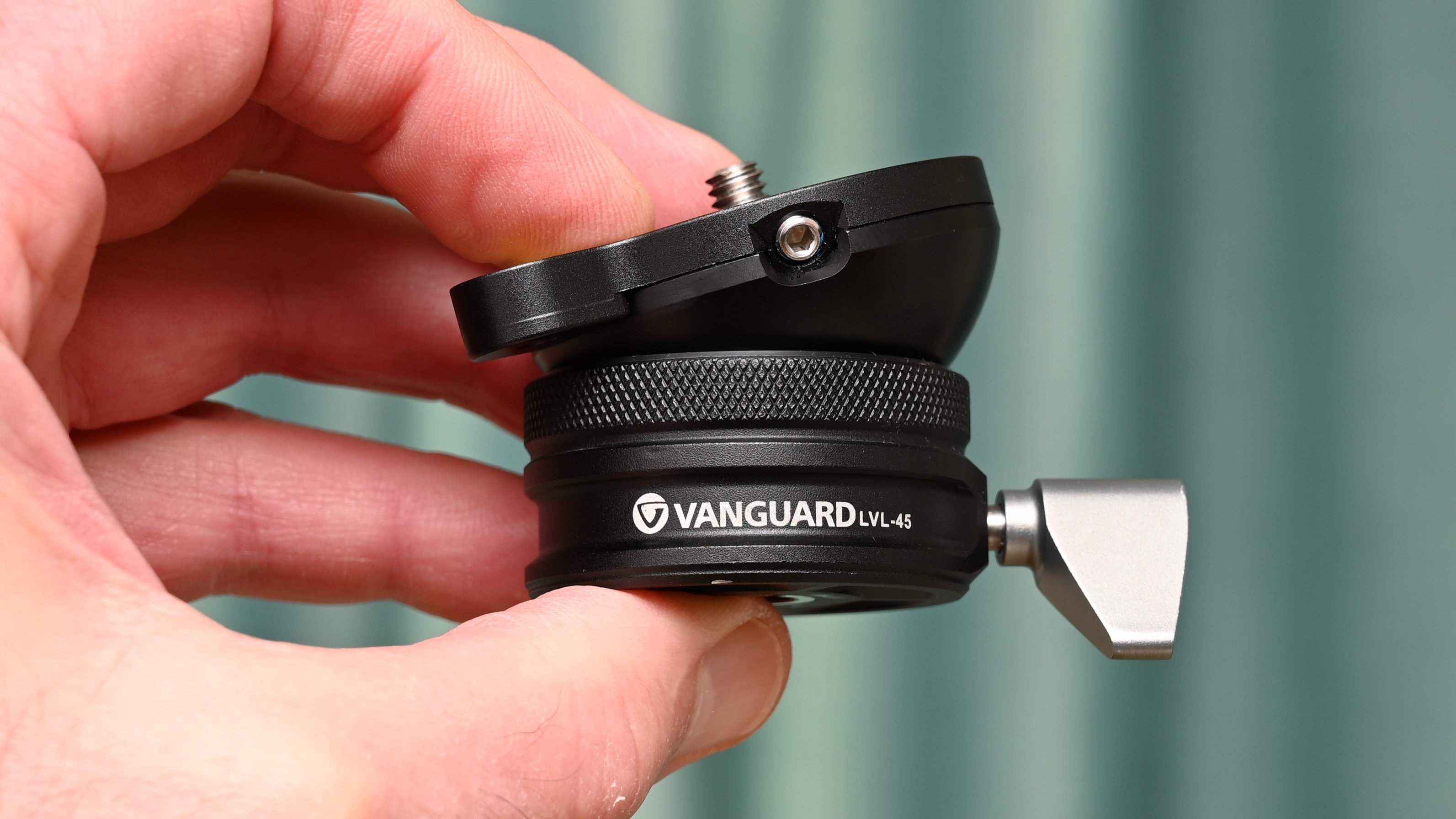

All but the smallest LVL in the range has a maximum 13 degrees of tilt in any direction. This image shows what that looks like with greatest amount of tilt being applied. (Image credit: Matthew Richards)

One application where the diameter of the LVL can be critical is with the use of travel tripods. The vast majority of these are now designed so that you swing the legs up around the extended center column for compact storage. The smallest LVL-42 and LVL-45 editions in the series are designed with travel tripods in mind, and the difference between them of just 3mm in diameter means that you should be able to get a good fit. These two editions are also relatively lightweight at just 115g and 140g respectively, while maintaining impressive load capacities of 20kg and 25kg.

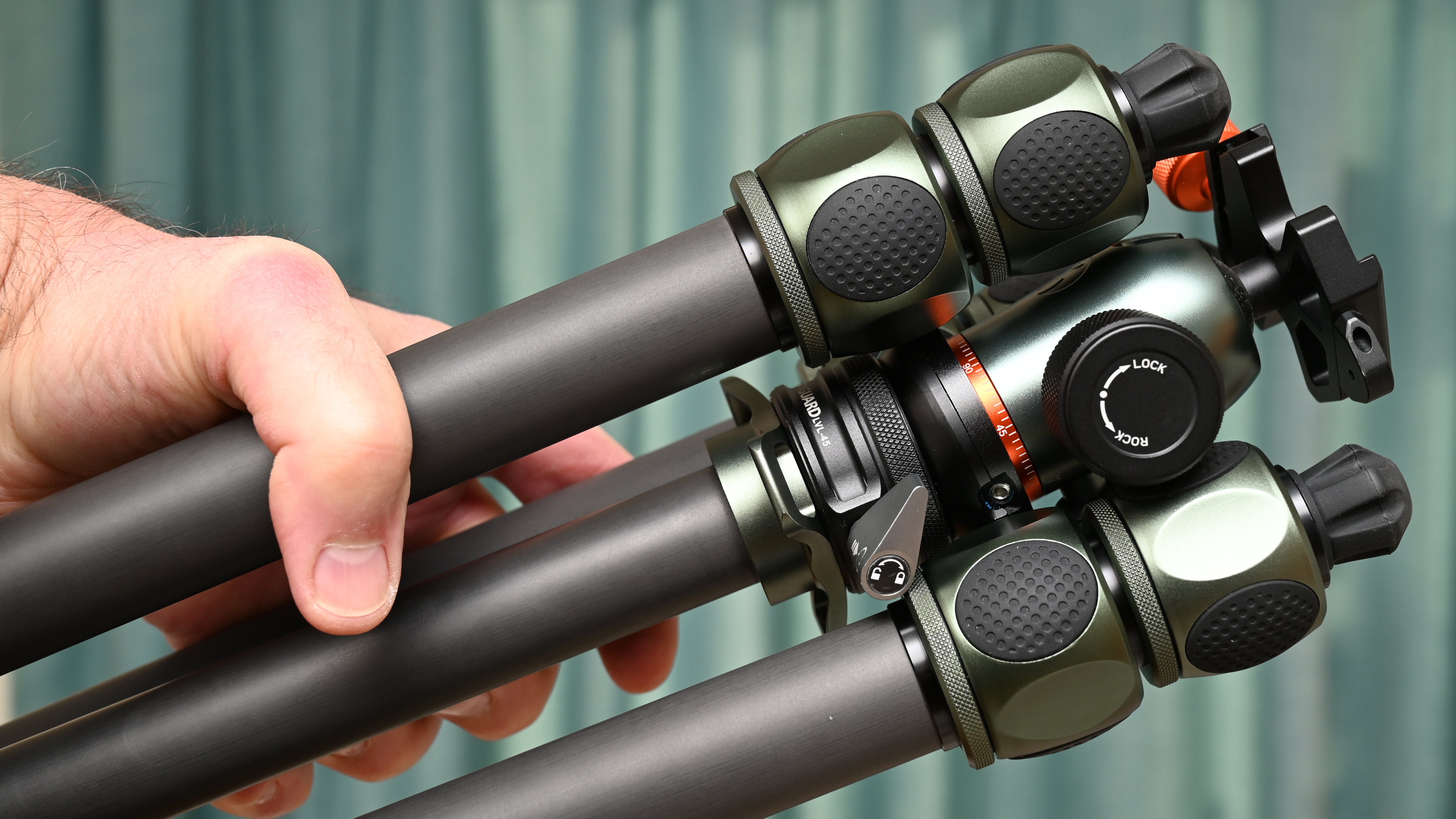

The two smallest editions in the range are designed to suit travel tripods in particular. As shown here, they add little to the overall height when the tripod is folded with the legs swung up and the feet surrounding the head. (Image credit: Matthew Richards)

To suit the largest variety of tripod legs, the base of the LVL features a 3/8” mounting thread and comes complete with a ¼” thread adapter. If your legs have a 3/8” mounting screw but you want to use a head with a ¼” socket, you could also use the supplied thread adapter up top for the head. However, if you need to use it at the base, you might have to buy one separately for the head if you don’t have one, as only one thread adapter is supplied with the LVL.

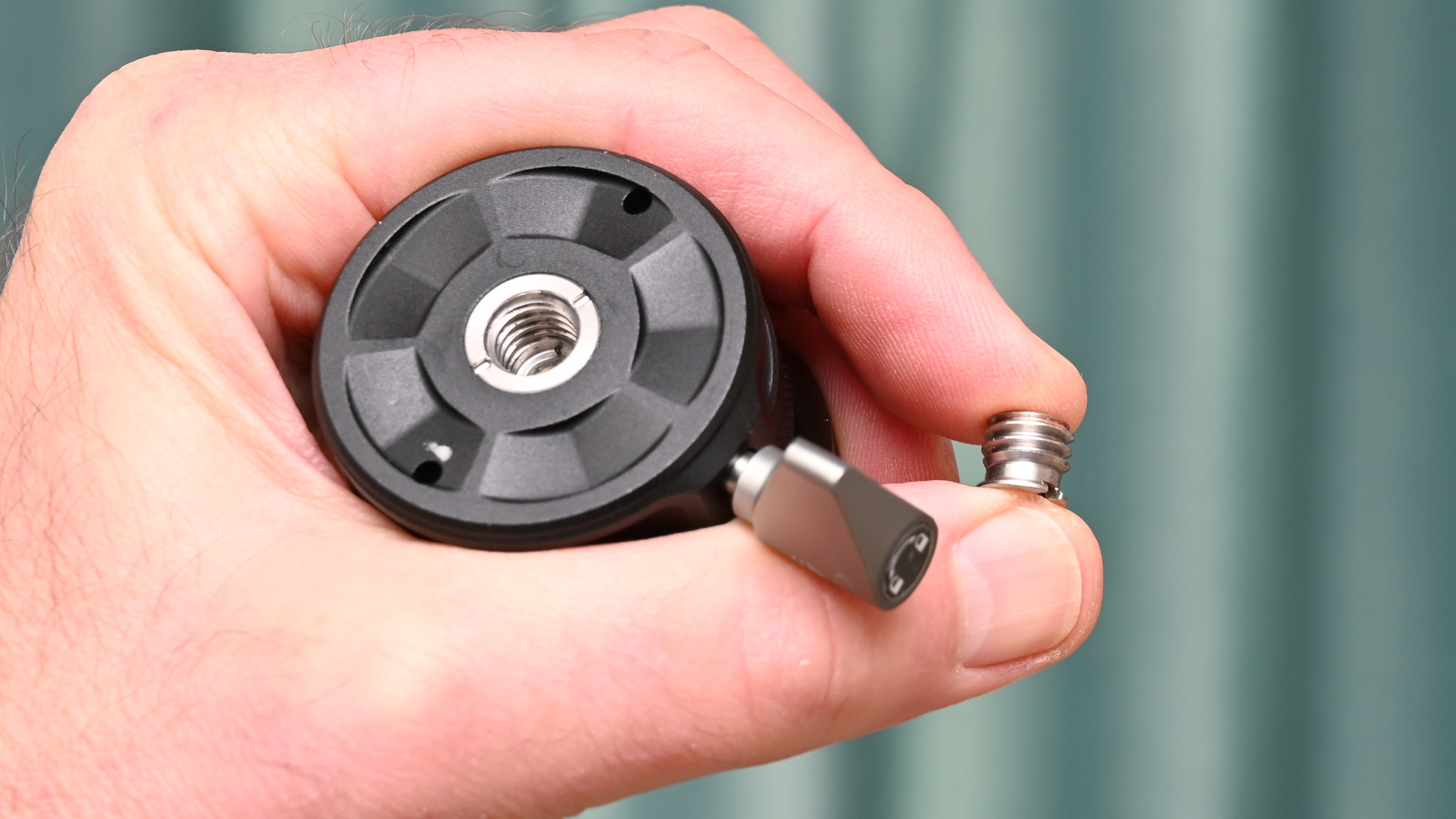

If you need to use two 3/8” to ¼” thread adapters for both your tripod and head, you’ll have to hope that your head or legs came with one, or buy one separately, as the LVL is only supplied with one thread adapter. (Image credit: Matthew Richards)

Vanguard LVL: Performance

For this review, I tested the Vanguard LVL-45 with my trusty 3 Legged Thing Winston 2.0 Carbon Fiber Tripod and AirHed Pro ball head. It’s a full-sized tripod with a strong load rating, but folds up like a travel tripod for relatively compact stowage. Any additional joint or component in a tripod system represents a potential point of weakness, making the tripod more prone to unwanted flexing or vibrations. I found there was no compromise in performance when using the Vanguard LVL. They’re precision-engineered from solid blocks of aluminum, using CNC machining to very tight tolerances. The high-quality feel certainly translates into high-end performance.

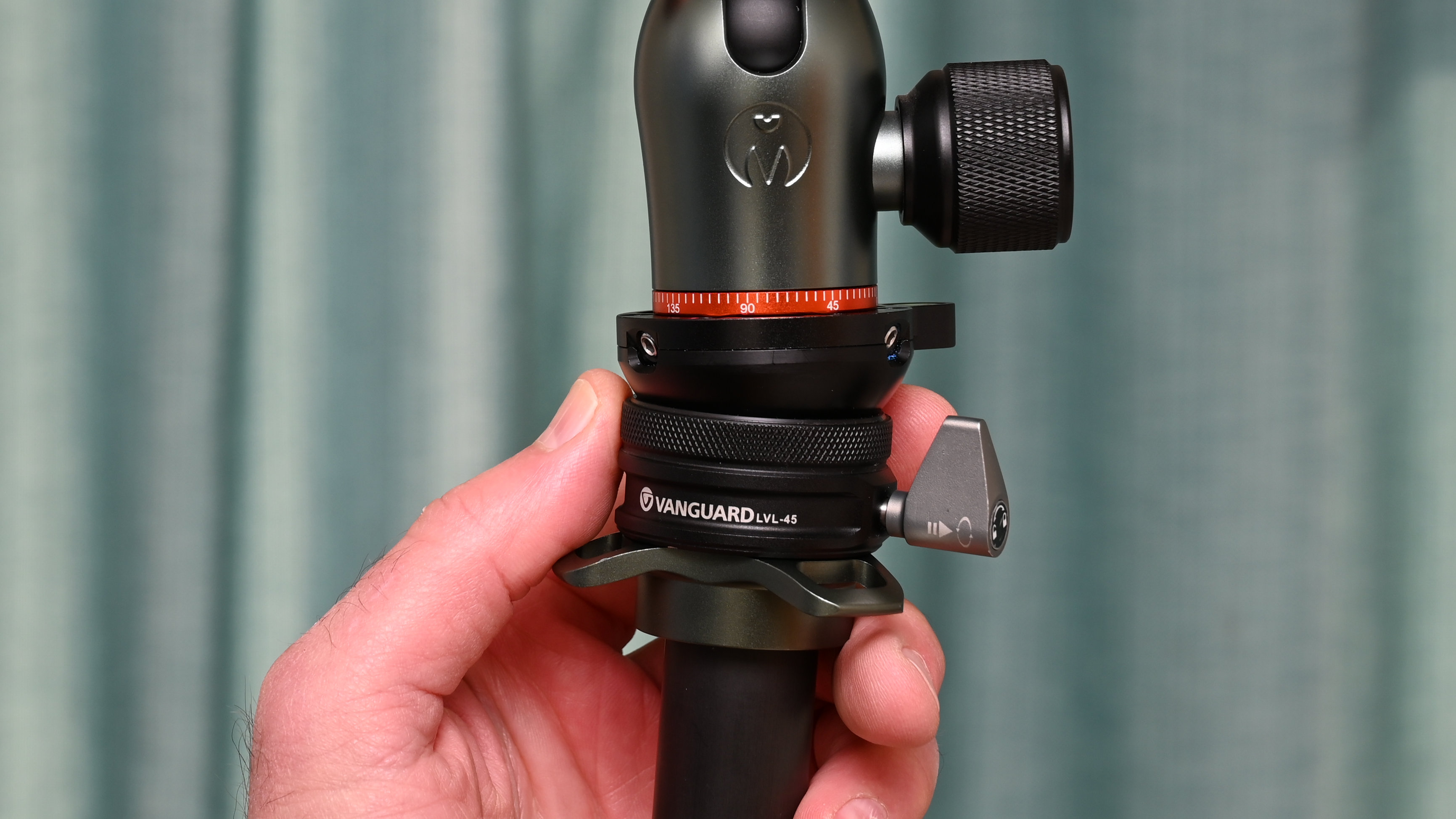

There’s a single locking lever for operating the LVL, making it very quick and easy to adjust. (Image credit: Matthew Richards)

The +/-15 degrees of tilt in any direction in all but the smallest LVL-42 edition (+/-13 degrees) offers a very generous range of adjustment. Adjustment itself is quick and easy although, as with ball heads, larger diameters of the operational component can make really fine adjustments a little easier and less fiddly. Even so, I found the second-smallest LVL-45 easy to adjust precisely.

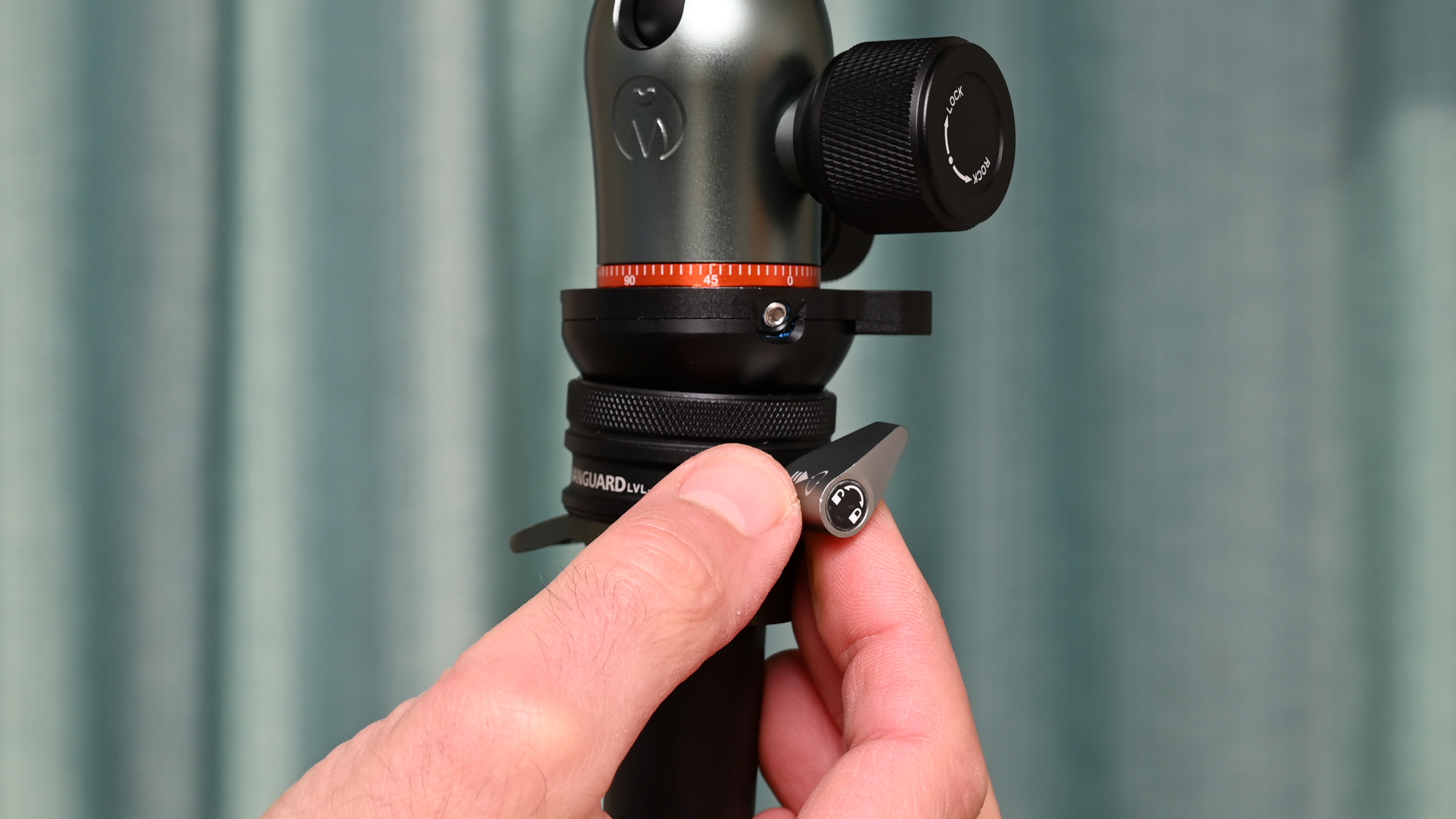

For setting the locking lever at its optimum operating angle, you can pull it out and rotate it on its six-sided shaft, thanks to a spring-loaded fixing. (Image credit: Matthew Richards)

To help with accurate adjustment, there’s a bubble level built into the top plate of the leveler. It’s good as far as it goes, although I generally prefer to rely on the virtual horizon option generally featured in cameras nowadays, for really precise adjustments.

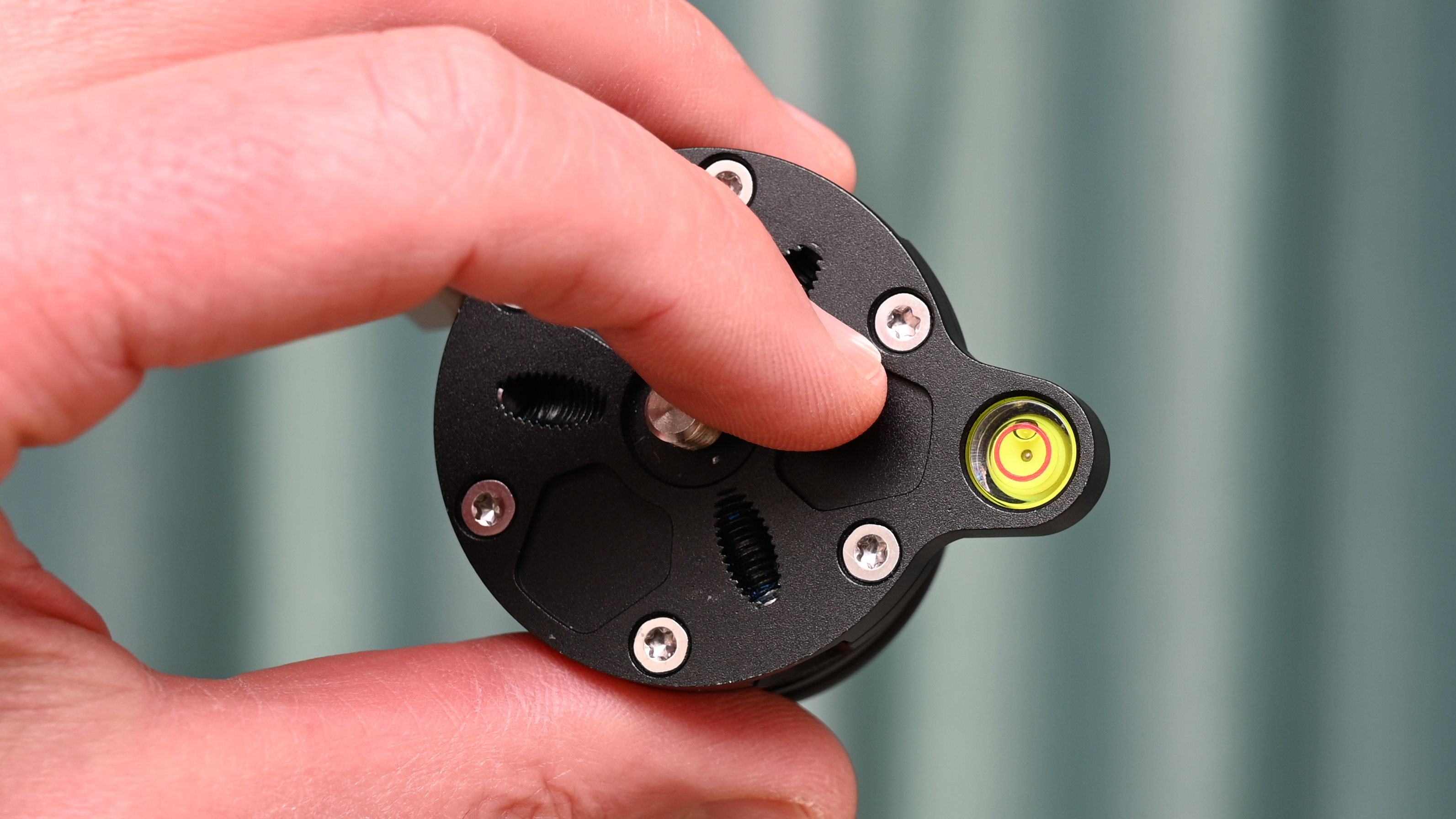

The bubble level on the upper plate can be a useful leveling aid, but the virtual horizon of your camera might be more precise. (Image credit: Matthew Richards)

One thing that I’ve found to be a real flaw in the performance of many tripod systems is that when panning from right to left, the head can start to unscrew from the legs. This makes the camera very wobbly and can ruin potentially great shots and video footage. To keep everything locked firmly in place, the LVL features three locking screws which you can tighten with the supplied hex key. They’re placed at 120-degree intervals around the top plate to ensure a really solid bond between the LVL and the tripod head. For an equally firm fixing between the LVL and the tripod legs, you need to rely on the tripod platform itself having one or more locking screws of its own.

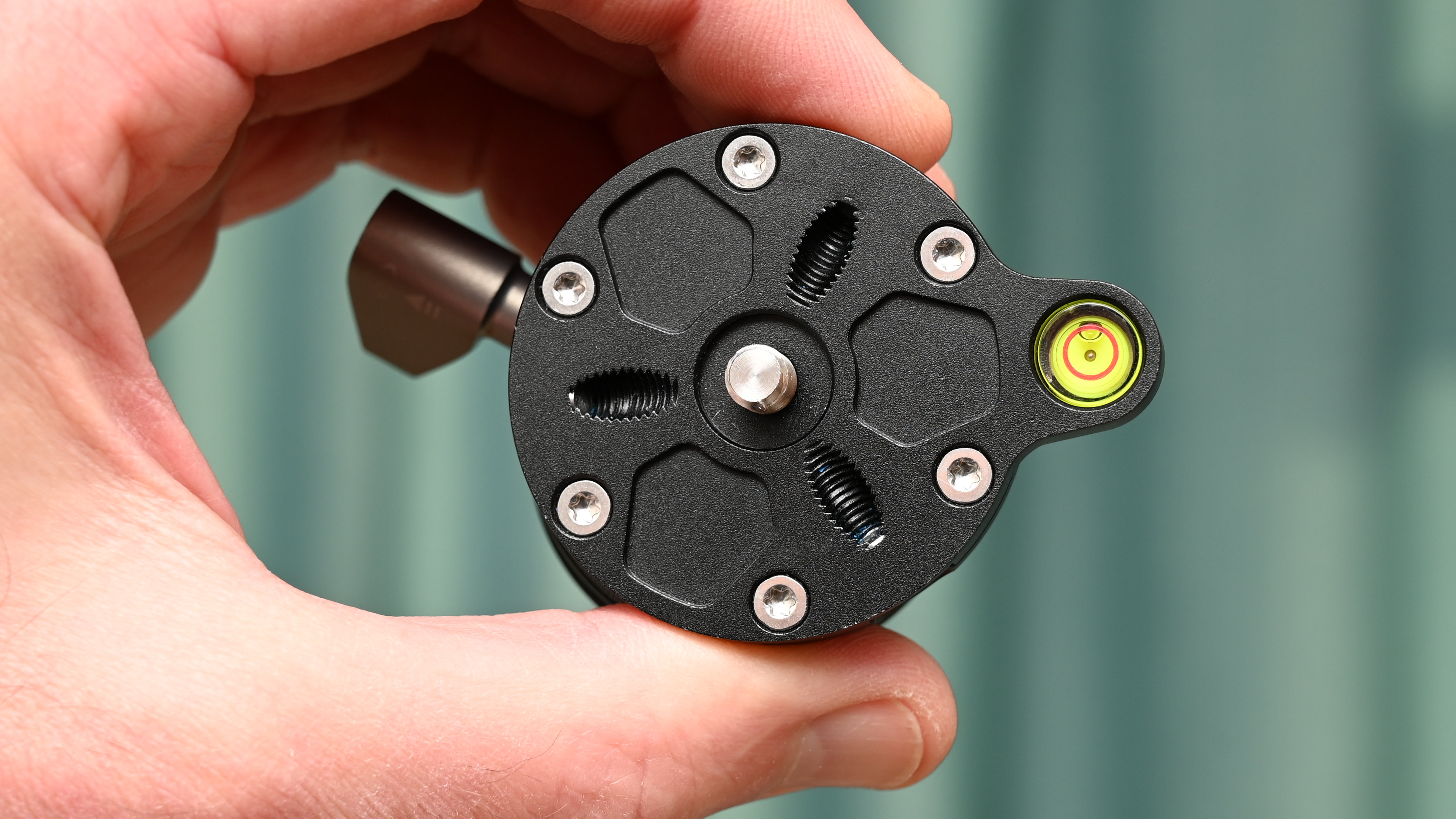

This top view of the LVL shows the three threaded tracks for locking screws, which are tightened with a supplied hex key. They ensure that the head doesn’t work loose during panning. (Image credit: Matthew Richards)

Vanguard LVL: Verdict

Like many of us, I’m finding that I use my camera’s video capture capabilities more than I used to, instead of majoring on stills for most of the time. I generally use a tripod when shooting video but often find it most convenient to take a regular photographic tripod with a ball head that has a pan-only release for catering to the types of stills and video that I often shoot. The Vanguard LVL makes my life a lot easier as I don’t have to spend a lot of time making sure that the legs of my tripod are perfectly leveled when setting it up for panning shots. I think it’s a neat product that’s really nicely made, performs excellently and is very good value at the price.

Swipe to scroll horizontally

Features

The feature set is quite minimal but it does its job very well and the bubble level is a nice addition.

★★★★

Design

It’s a clever design that’s well thought out and expertly implemented. I like the generous range of size options.

★★★★★

Performance

The LVL is rock-solid in terms of stable support as well as being very quick and easy to use.

★★★★★

Value

As I’d expect, larger editions in the range are more expensive to buy but they’re very good value overall.

★★★★

(Image credit: Matthew Richards)

Alternatives

Vanguard Alta Pro 3VRL 303CV 18

The Vanguard Alta Pro 3VRL 303CV 18 is a specialist tripod kit for shooting video. It comes complete with a sturdy set of carbon fiber legs, a removable leveling base and a high-performance fluid head. It costs around £479.

Vanguard Alta Pro 3VL 304CT

The Vanguard Alta Pro 3VL 304CT is a set of travel-friendly carbon fiber legs, no center column and a very similar integral levelling system to the standalone LVL range. It’s ideal if you want a set of legs for predominantly shooting video, and want to add your own choice of head. It sells for around £300.
